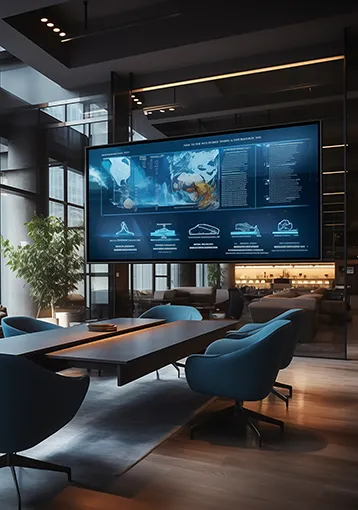

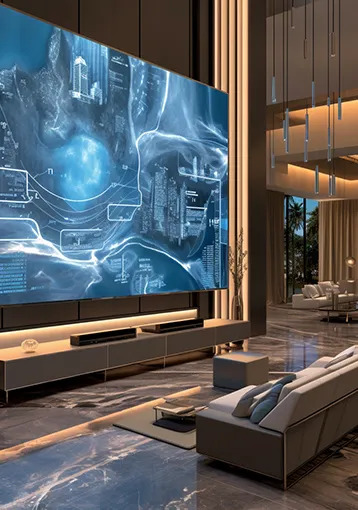

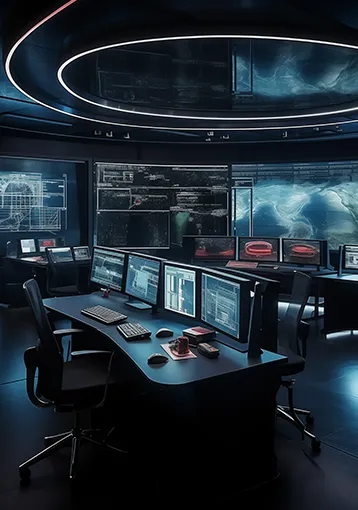

Large-format 1200 × 675 mm flip-chip COB panel for fast, clean video walls in conference rooms, control centers and home cinema.
The mega series LED display is a large size full flip chip COB display for house application market.

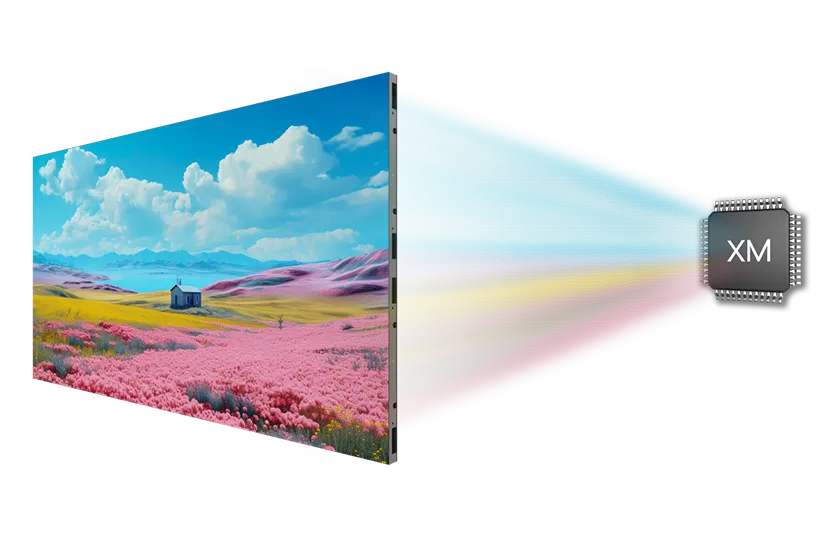

Common cathode PWM constant current driver IC,energy saving.
Large channel, integrated column and vertical control IC, less IC, less heat dissipation.
High gray level 16bit, work with control system can be 22bit+ color processing depth.
7,680HZrefresh rate, available for XR solution.

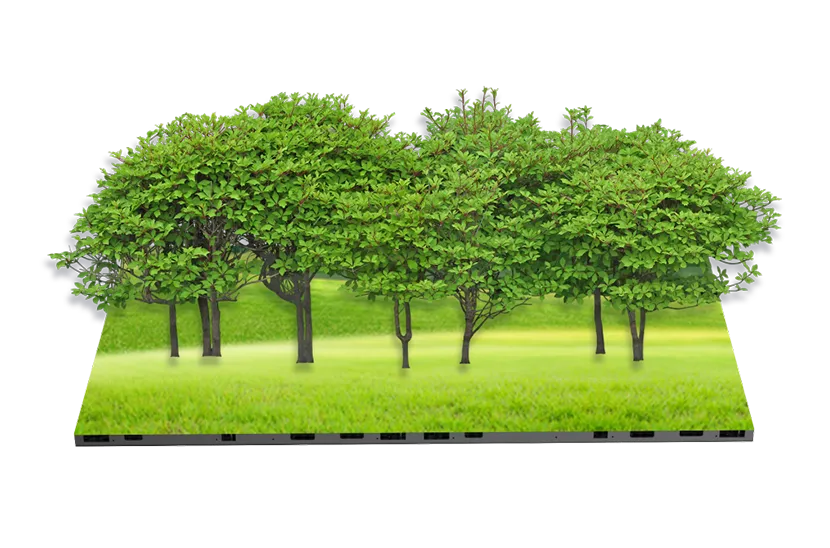

Full flip chip, no welding pad block, high luminous efficiency, and wider view angle.
No welding wire, reduce the failure rate of the lamp bead.
common cathode design, reduce power consumption, green and environmental protection.

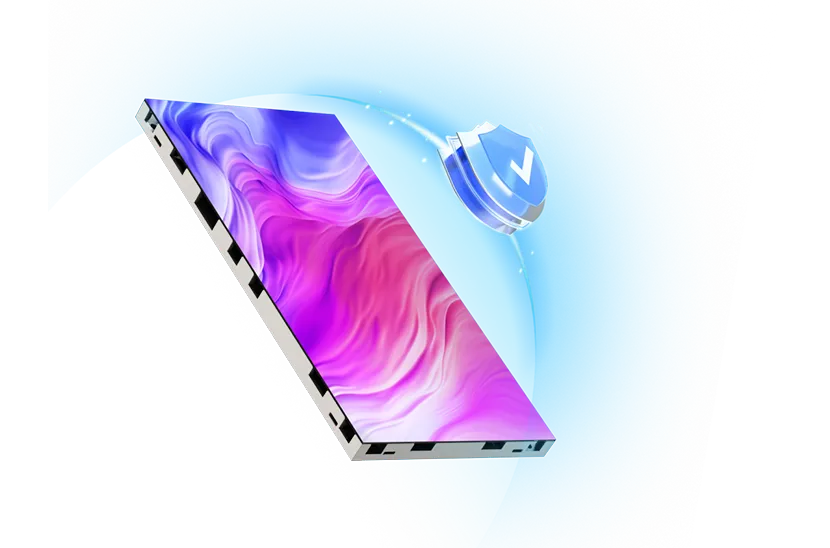

Special treatment with G0B technology, enabling surface water-resistant, dust-resistant,
impact-resistant and anti-static.

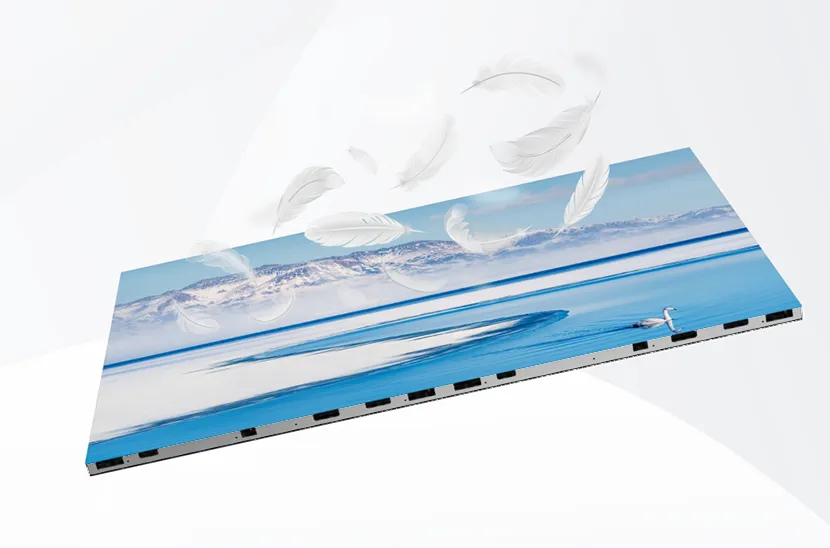

light-weight design, save your labor cost during installation.
Low brightness with high grayscale, vibrant colors, and a soft, delicate image.
Tap a model to select it — the highlighted column is your current selection.
| Model | C6J06 | C6J07 | C6J09 | C6J12 | C6J15 | C6J18 |
|---|---|---|---|---|---|---|
| Pixel Configuration | COB | COB | COB | COB | COB | COB |
| Pixel Pitch(mm) | 0.62 | 0.78 | 0.93 | 1.25 | 1.56 | 1.87 |
| Cabinet Size(mm)(WxHxD) | 1,200x675x28 | 1,200x675x28 | 1,200x675x28 | 1,200x675x28 | 1,200x675x28 | 1,200x675x28 |
| Cabinet Resolution(WxH) | 1,920x1,080 | 1,536x864 | 1,280x720 | 960x540 | 768x432 | 640x360 |
| Cabinet Weight(kg/cabinet) | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 |
| Refresh Rate(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 |
| Grayscale(bit) | 16 | 16 | 16 | 16 | 16 | 16 |
| Brightness(nits) | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| Viewing Angle (H/V) | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
