Fine-pitch COB and MIP walls for boardrooms and control rooms, high-brightness outdoor displays, touring stage panels and creative shapes — specified, installed and supported by Unity Logics across Southern California.
Five product families cover everything from 0.6 mm boardroom walls to 10 mm stadium billboards.
Indoor Fine-PitchUltra-HD COB, MIP & SMD walls for boardrooms, control rooms, studios and home cinema.15 series →
Outdoor & DOOHWeatherproof, sunlight-readable displays for billboards, façades, kiosks and stadiums.6 series →
Rental & StageLightweight touring panels and interactive LED floors for concerts, events and broadcast.4 series →
Creative & CurvedFlexible, curved and strip displays for columns, circles, railings and feature walls.3 series →
All-in-One & PostersPlug-and-play LED meeting displays and digital posters for offices, retail and lobbies.5 series →
Need it for one event?Rent an indoor or outdoor LED wall with delivery, setup and an on-site tech — and price it instantly.LED wall rental →
Every series can be configured to your size, pitch and budget. Tap a product for full specifications.
SMDIndoor Fine-PitchMagic Cube Series-SMDUltra-HD SMD fine-pitch display with GOB protection for conference rooms, monitoring and data centers.Pitch 0.93–3.7 mm Brightness 600–800 nits
COBIndoor Fine-PitchButterfly Series-COB500 × 500 mm COB commercial display with 45° edges for naked-eye 3D corners — single or double-sided.Pitch 1.25–2.61 mm Brightness 1,000 nits
SMDIndoor Fine-PitchFirefly Series-SMDLarge-size SMD video wall with common-cathode efficiency for monitoring centers, control rooms and conference spaces.Pitch 1.25–1.87 mm Brightness 500–600 nits
MIPIndoor Fine-PitchBlack Elves Series-MIPUltra-thin MIP fine-pitch video wall with optional high-brightness mode for conference, control and command centers.Pitch 0.625–1.87 mm Brightness 1,000 nits
SMDIndoor Fine-PitchDiamond SeriesHigh-definition SMD video wall with mixable cabinet sizes for conference, monitoring and retail spaces.Pitch 1.29–3 mm Brightness 600–800 nits
MIPIndoor Fine-PitchMagic Cube Series-MIPUltra-HD flip-chip MIP fine-pitch display with 20,000:1 contrast for control rooms, command centers and boardrooms.Pitch 0.93–3.7 mm Brightness 1,000 nits

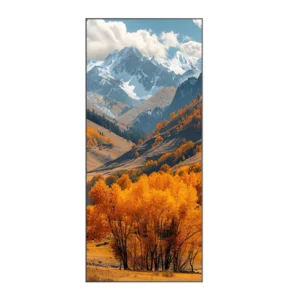

MIPIndoor Fine-PitchArcX Series-MIPFine-pitch MIP display that assembles quickly into curves and circles — ideal for studios, museums, airports and feature walls.Pitch 0.93–3.75 mm Brightness 1,000 nits
SMDIndoor Fine-PitchButterfly Series-SMDVersatile 500 × 500 mm SMD commercial display — single or double-sided, with optional hanging beam.Pitch 1.95–3.9 mm Brightness 800–1,000 nits
COBIndoor Fine-PitchVision SeriesProfessional flip-chip COB display with high-grayscale image processing for conference, monitoring and home cinema use.Pitch 1.87 mm Brightness 1,000 nits
COBIndoor Fine-PitchFirefly Series-COBLarge-size flip-chip COB video wall built for 24/7 monitoring, control rooms and data centers.Pitch 0.93–1.87 mm Brightness 600 nits
COBIndoor Fine-PitchMega SeriesLarge-format 1200 × 675 mm flip-chip COB panel for fast, clean video walls in conference rooms, control centers and home cinema.Pitch 0.62–1.87 mm Brightness 1,000 nits
Indoor Fine-PitchNavigator SeriesUltra-wide 21:9 fine-pitch LED display for control rooms, conference systems and esports environments.Pitch 1.56 mm Brightness ≤1,000 nits
COBIndoor Fine-PitchGuard SeriesFlagship Mini-LED COB display with high-bandwidth signal transmission, built for boardrooms, monitoring, command and data centers.Pitch 0.62–1.87 mm Brightness 1,000 nits
COBIndoor Fine-PitchBlack Elves Series-COBUltra-thin, lightweight flip-chip COB video wall for conference rooms, control rooms and command centers.Pitch 0.625–1.87 mm Brightness 800–1,000 nits

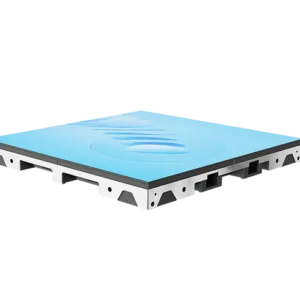

COBIndoor Fine-PitchGemini SeriesUltra-thin, double-sided fine-pitch COB LED display for airports, malls, command centers and premium home cinema.Pitch 0.93–1.87 mm Brightness 800–1,000 nitsRental & StageFoundation SeriesInteractive LED dance-floor panel for stages, clubs, studios and experiential events, with radar-based interaction.Pitch 1.25–2.5 mm Brightness up to 1,200 nits

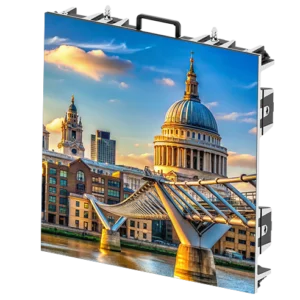

Rental & StageLA SeriesLightweight touring LED panel for stages, studios, auto shows and performances, with indoor and outdoor versions.Pitch 1.95–5.9 mm Brightness 800–1,200 nits indoor
COBRental & StageLX SeriesPremium COB rental panel for concerts, press events, esports and summits, with curve locks and tool-light rigging.Pitch 1.56–2.27 mm Brightness ≤1,500 nits

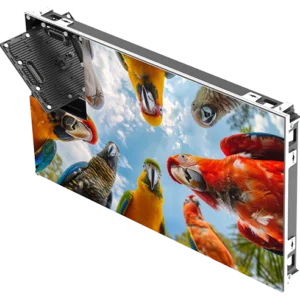

Rental & StageArk Series16:9 UHD rental and fixed-install panel for concerts, launches, esports, auto shows and live production.Pitch 0.93–3.7 mm Brightness 200–4,000 nitsOutdoor & DOOHNOX Pro SeriesSemi-outdoor 16:9 LED display for storefronts, stadium concourses, covered plazas and bridges.Pitch 1.25–5 mm Brightness ≥4,000 nits
Outdoor & DOOHNOX Series-DOOHDigital out-of-home LED display for street advertising, transit shelters, buildings and retail.Pitch 1.25–2.5 mm Brightness ≤4,000 nits MIP
MIPOutdoor & DOOHNOX Gen2 SeriesSecond-generation ultra-HD outdoor MIP display for advertising, bus stations, buildings and bridges.Pitch 1.25–2.5 mm Brightness 4,000–6,500 nits
Outdoor & DOOHObsidian SeriesFreestanding double-sided outdoor LED kiosk for storefronts, hotels, malls and venues, with cloud content management.Pitch 1.25–1.87 mm Brightness 3,500–4,000 nits
Outdoor & DOOHObesum SeriesHigh-protection outdoor LED display for billboards, building façades, stadiums and pedestrian bridges.Pitch 1.95–10 mm Brightness 5,000–12,000 nits
MIPOutdoor & DOOHNOX Series-MIPUltra-HD outdoor MIP display for advertising, building façades, transit hubs and retail frontage.Pitch 1.25–1.87 mm Brightness ≤4,000 nitsCreative & CurvedArcX SeriesCurve-ready fine-pitch display in your choice of SMD, COB or MIP — built for circular and curved video walls.Pitch 1.25–2.5 mm Brightness 600–1,000 nits
Creative & CurvedYoga SeriesFlexible soft-module LED that wraps columns and curves for studios, museums, retail and feature walls.Pitch 1.25–4 mm Brightness 600–800 nits

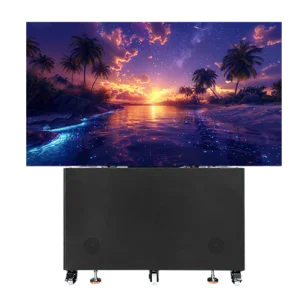

Creative & CurvedInspire SeriesSlim 1000 × 250 mm strip display for railings, balconies and architectural bands in malls, arts centers and lobbies.Pitch 1.25–3.9 mm Brightness 800–1,000 nitsAll-in-One & PostersTransformer SeriesInstallation-free all-in-one LED wall on wheels — just plug in, unfold and present.Pitch 0.75–1.56 mm Brightness 1,000 nits
All-in-One & PostersEva Pad SeriesPremium all-in-one LED meeting display (108″–217″) with 1,000-nit brightness, touch and 9-way screen sharing.Pitch 0.625–2.5 mm Brightness 1,000 nits
All-in-One & PostersS-Poster SeriesFoldable, mobile LED poster that can stand alone or splice into a larger wall — ideal for retail and events.Pitch 0.9–2.5 mm Brightness 800–1,000 nits
All-in-One & PostersV-Pad SeriesAll-in-one LED meeting display (108″–217″) with touch, wireless mirroring and mobile or wall mounting.Pitch 0.93–2.5 mm Brightness 600 nits
All-in-One & PostersV-Poster SeriesAll-in-one smart LED poster for retail, malls, hotels and exhibitions — plug in and publish from the cloud.Pitch 0.9–2.5 mm Brightness 600 nitsWe recommend the right series, pitch and size for how your space is actually used.
Seamless fine-pitch walls and all-in-one LED meeting displays that replace projectors and TV walls.
24/7-rated COB and MIP walls with high contrast and low heat for monitoring and data centers.
Camera-friendly touring panels, XR-ready backdrops and interactive LED floors.
Large, bright walls for lyrics, sermons and livestreams that look great to every seat.
Durable displays for lecture halls, gyms, arenas and campus signage.
The way LEDs are packaged affects durability, image quality and price. Here’s the quick guide.
LED chips are mounted directly on the board and sealed under a protective layer.
Micro-scale chips are packaged individually, combining fine pitch with flexible manufacturing.
The proven industry standard: RGB LEDs in individual packages mounted on the module.

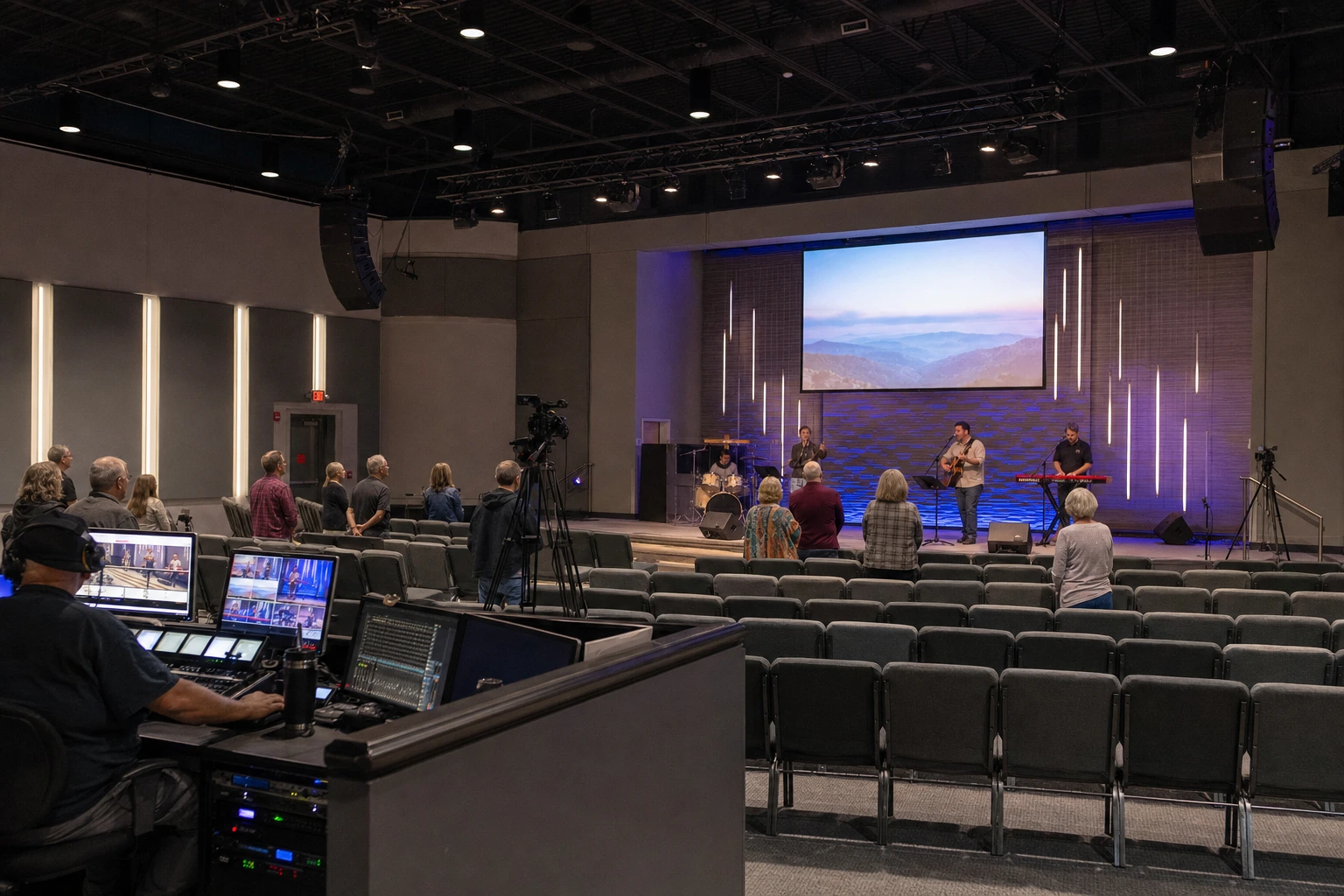

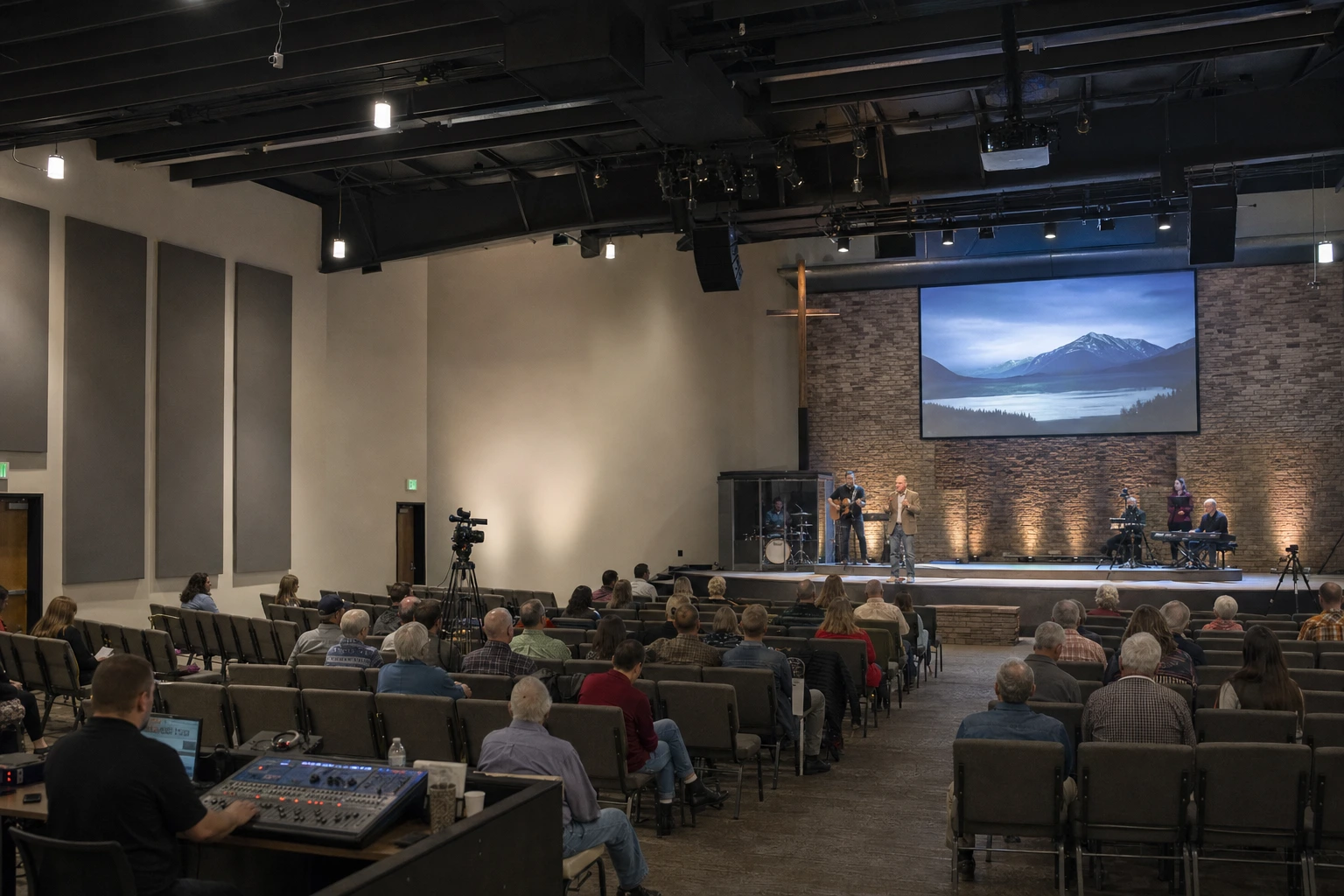

Churches

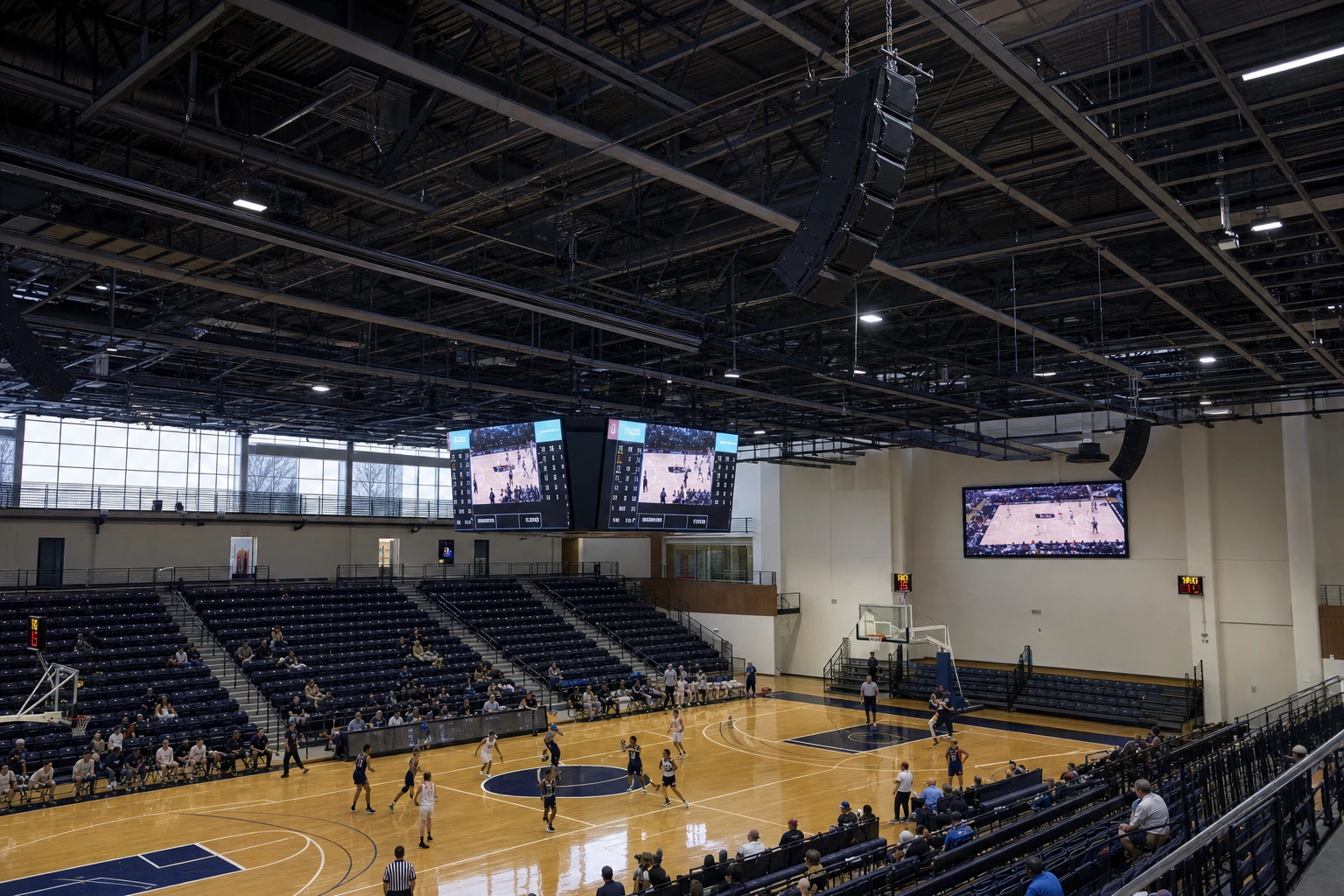

Arenas

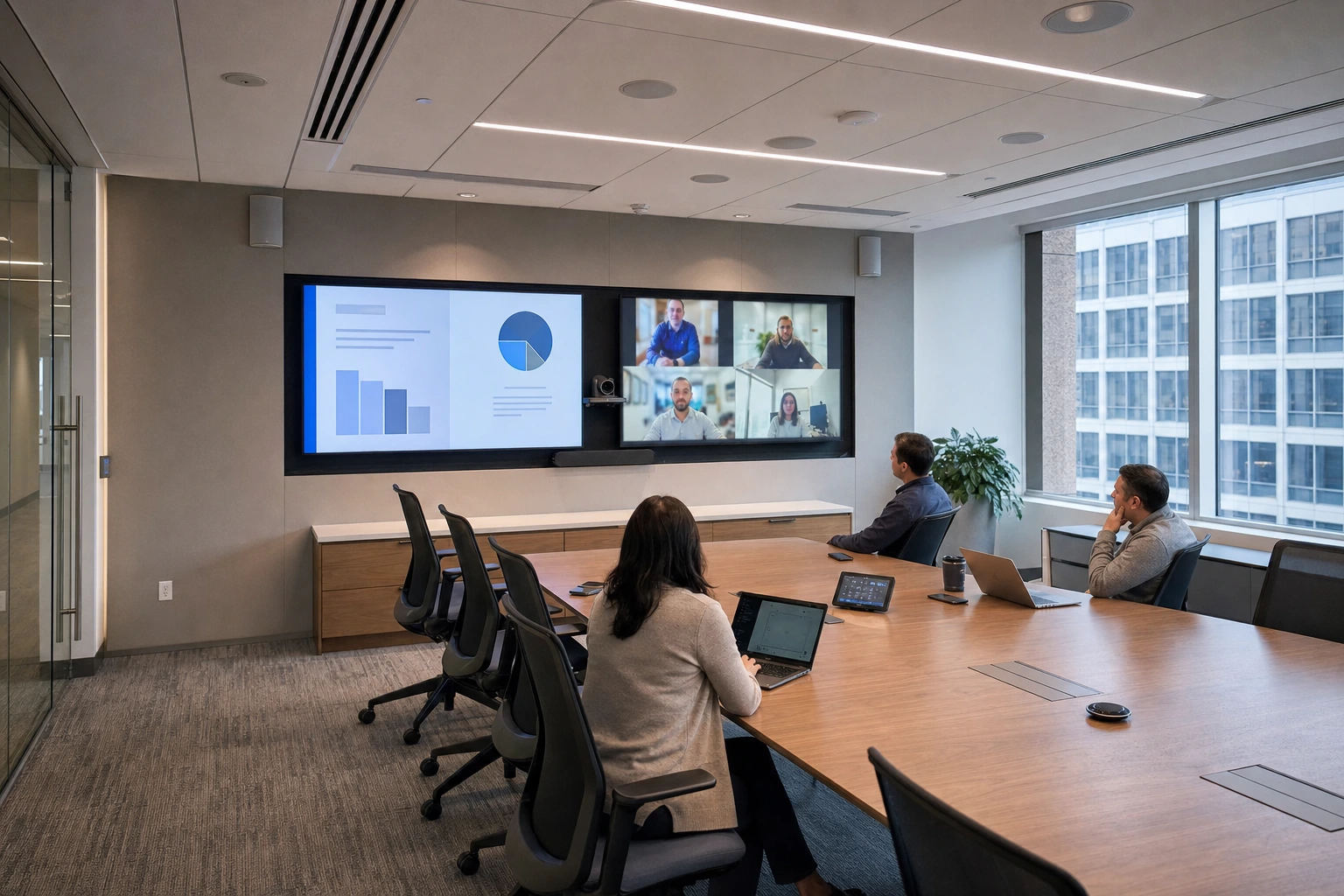

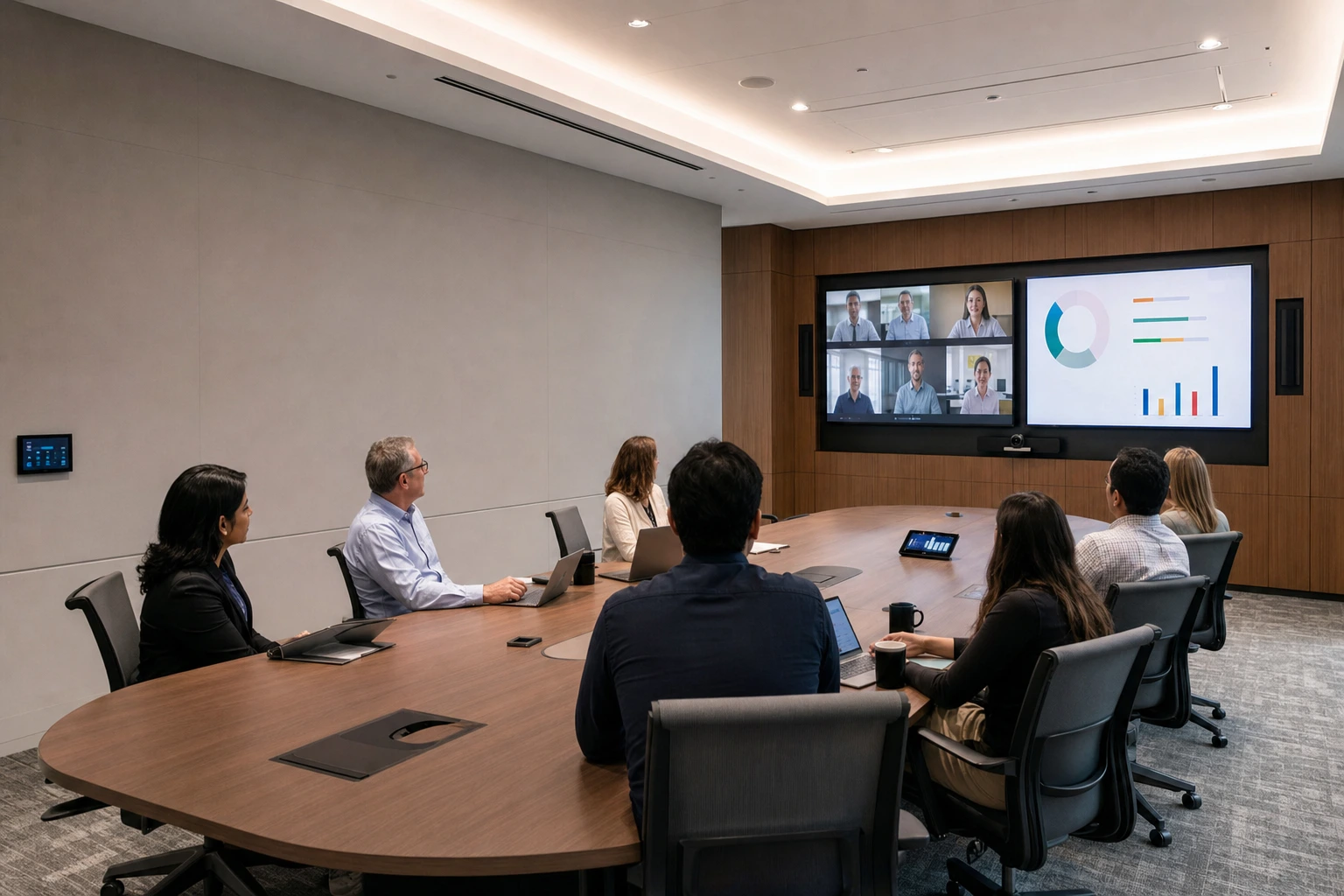

Meeting rooms

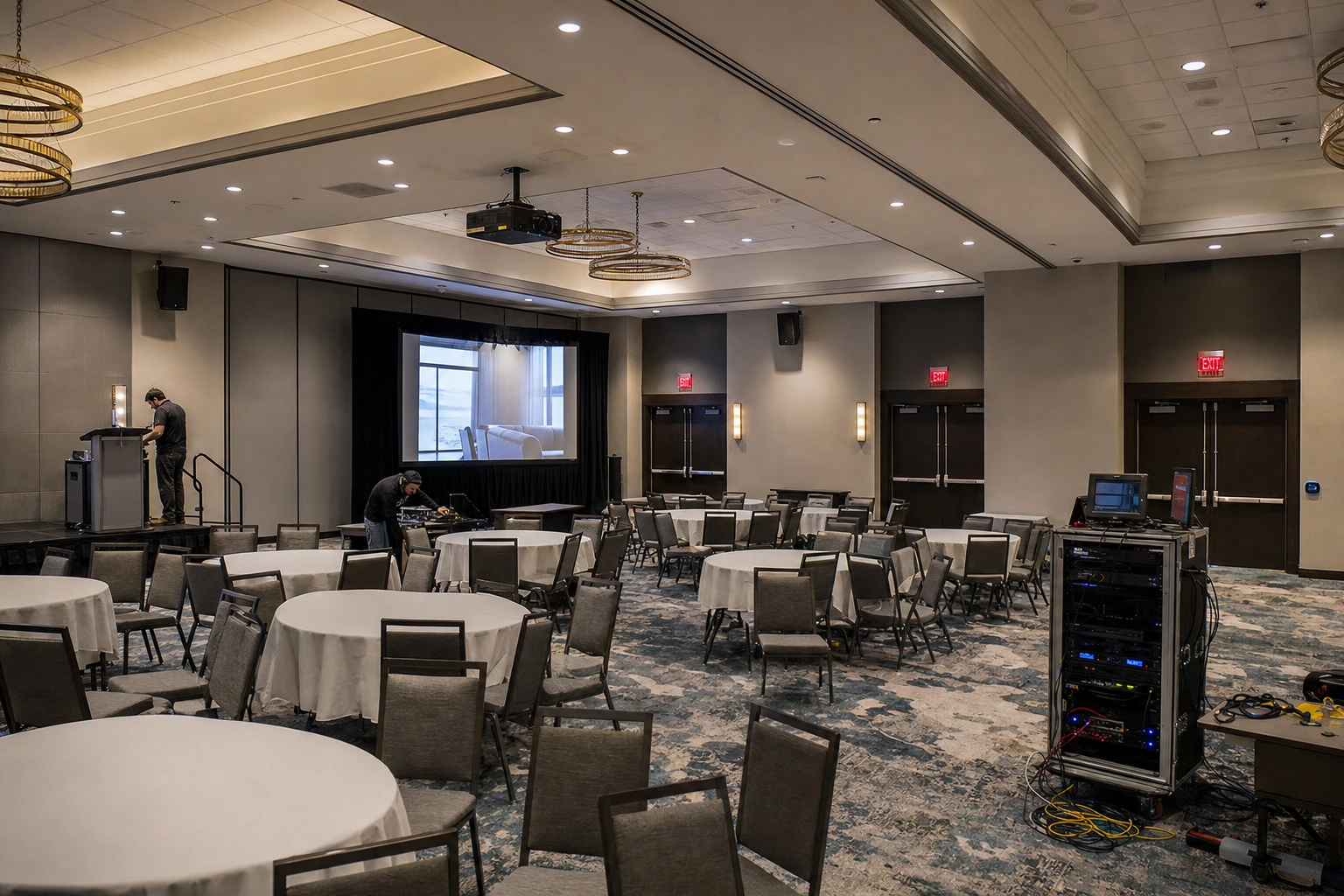

Hotels & banquets

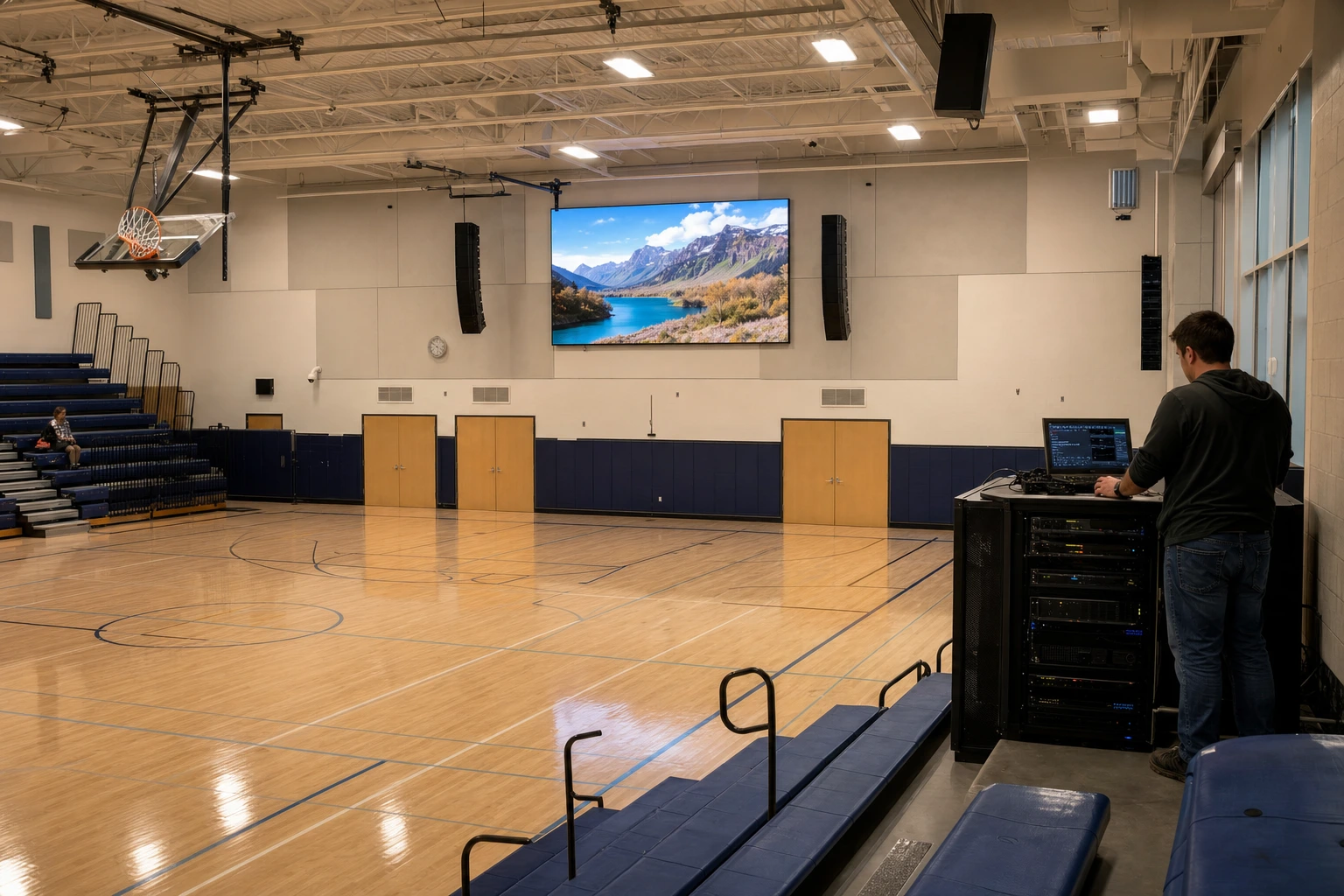

Gymnasiums
Concerts & live events

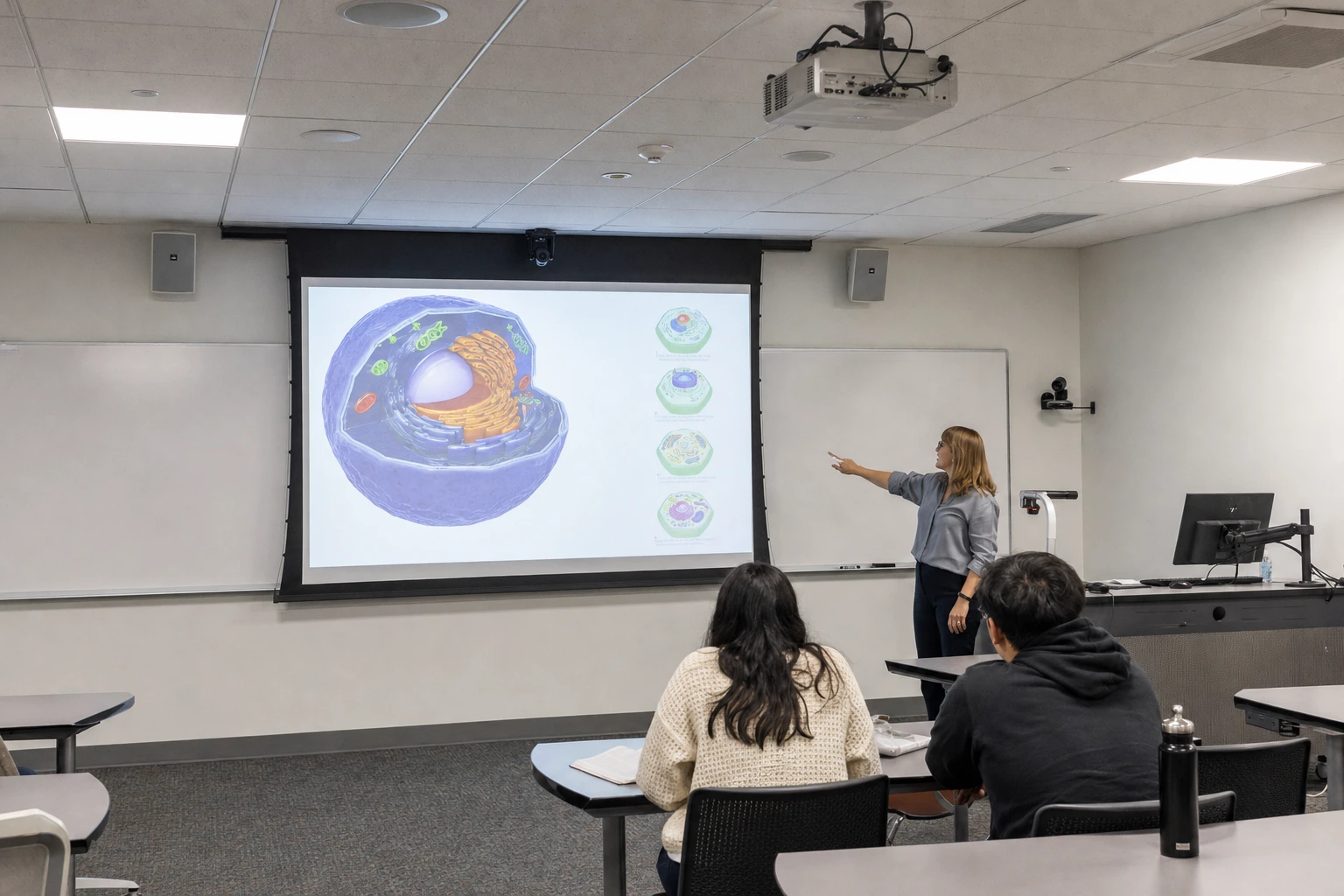

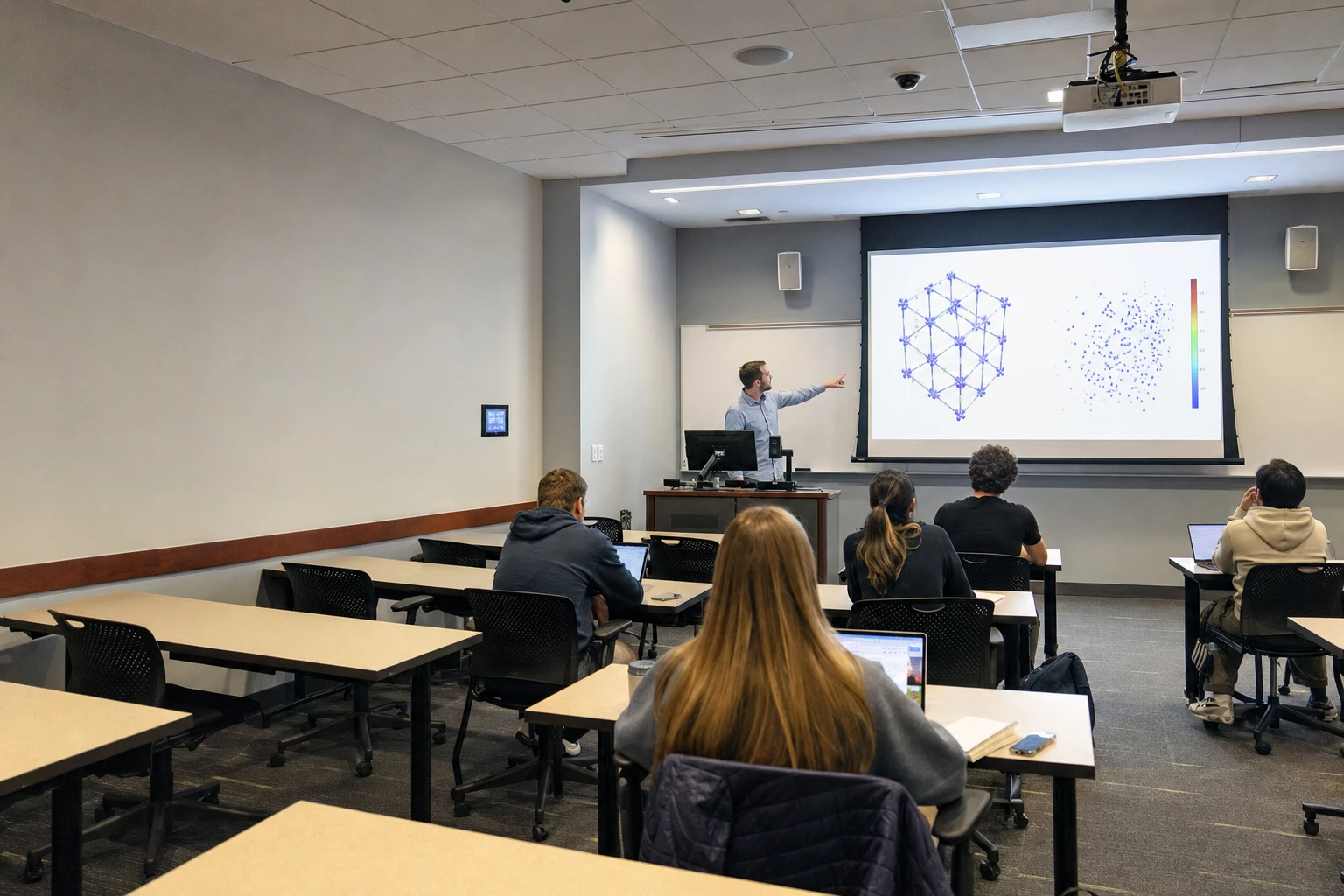

ClassroomsSite visit, viewing-distance and brightness planning, and a recommended series, pitch and size.

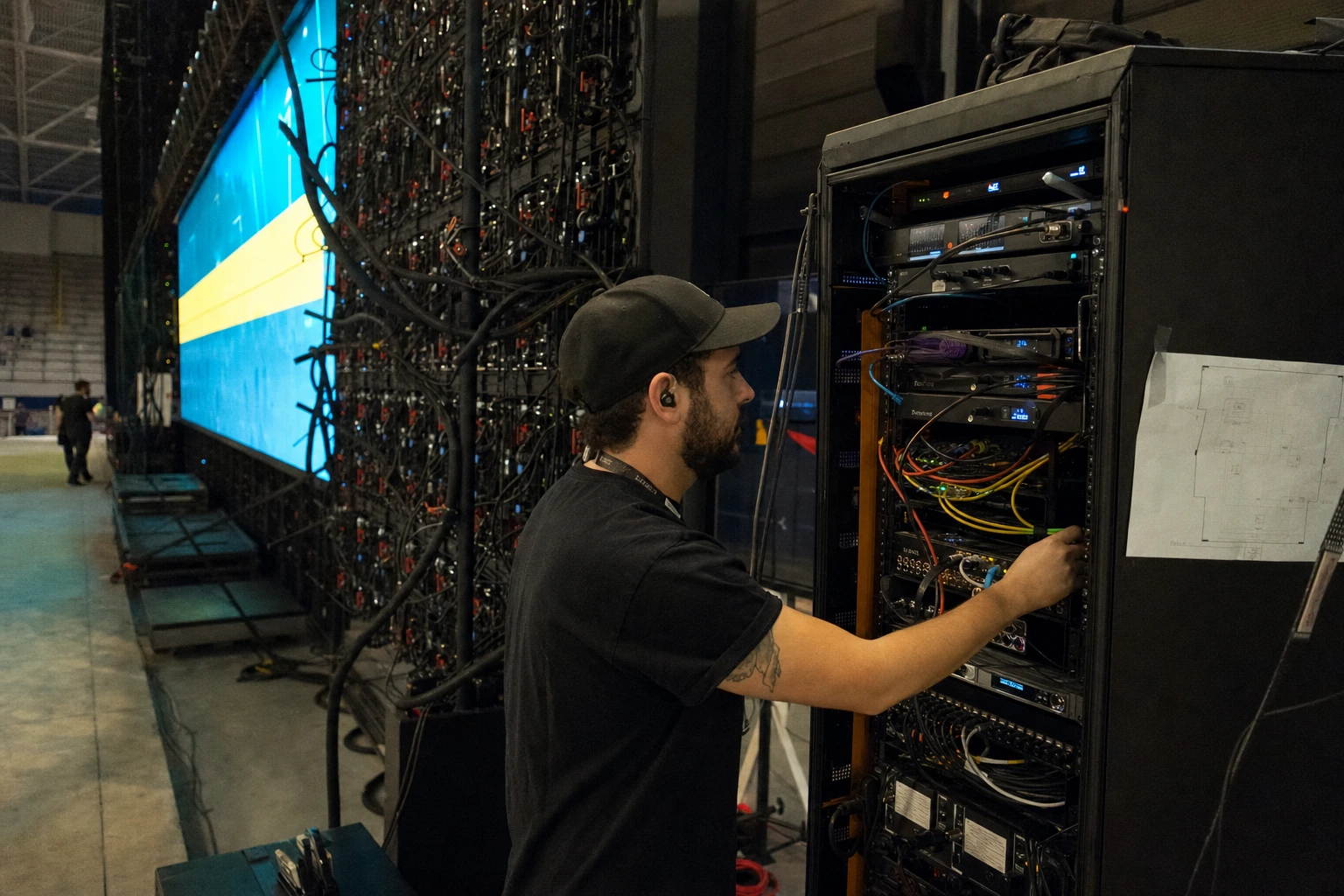

Structure, power, signal and processing installed by our own Southern California crew.
Color calibration, content setup and hands-on training so your team is confident on day one.
Ongoing local support, spare modules and service when you need it.
Rent indoor or outdoor LED walls with delivery, setup and an on-site technician — and get an instant estimate online.
Tell us about your space and goals. We’ll recommend the right series, pitch and size and send a detailed proposal — usually within one business day.

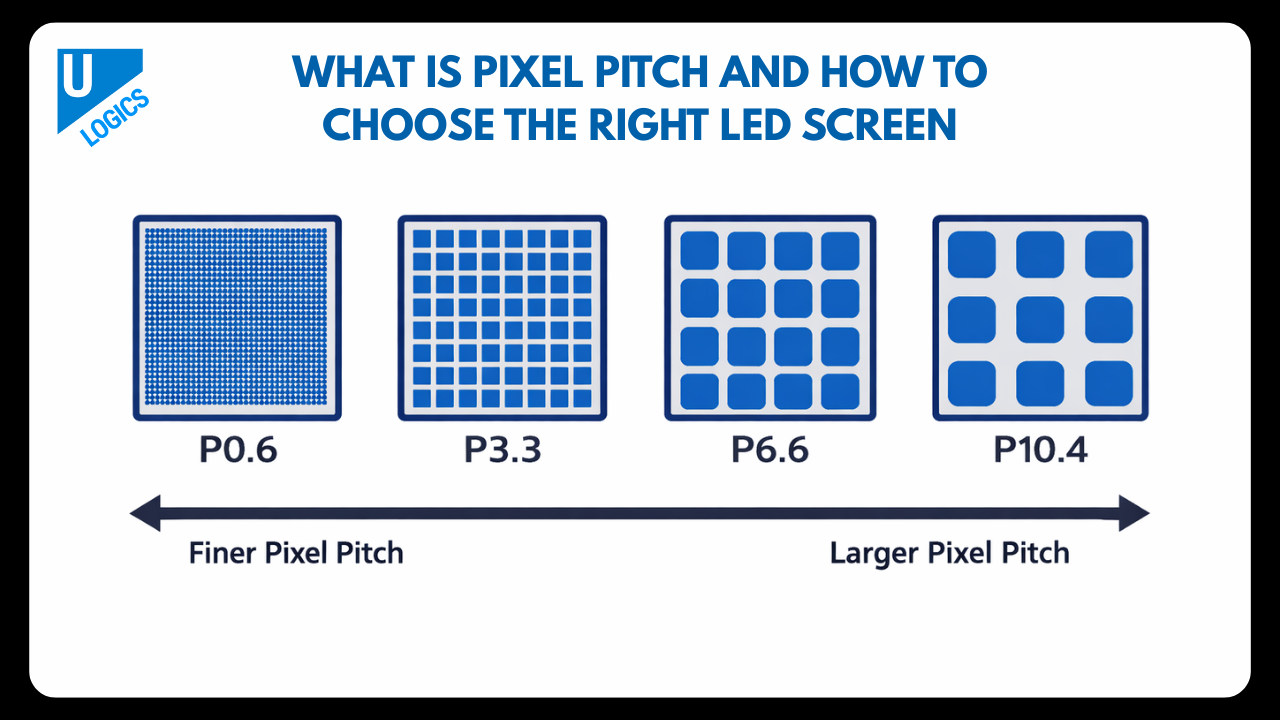

It depends mainly on the closest viewing distance. As a rule of thumb, the minimum comfortable distance in feet is roughly the pixel pitch in millimeters × 3.3 — so a 1.5 mm wall looks seamless from about 5 ft, while a 3.9 mm wall suits audiences 13 ft and beyond. We’ll recommend the right pitch for your room.
COB offers the toughest surface and smoothest image for fine-pitch indoor walls, MIP balances very fine pitch with cost and color consistency, and SMD remains the versatile, cost-effective choice for larger pitches, events and outdoor. See the technology guide above or ask us for a side-by-side recommendation.
Yes. LED walls have no bezels, stay bright in lit rooms and scale to any size. All-in-one LED meeting displays such as the Eva Pad and V-Pad series are designed as direct projector and TV replacements.
We handle the site survey, mounting structure, power and signal planning, video processing, installation, calibration and training. Timelines depend on size and site conditions — we’ll include a schedule with your proposal.
Yes. Our Outdoor & DOOH series includes weather-rated, high-brightness billboards, building façade screens, double-sided kiosks and semi-outdoor storefront displays.
Absolutely. We rent indoor and outdoor LED walls for events across Southern California — a great way to see LED in your space first. Visit our LED wall rental page for an instant estimate.
