4 Zone Mixer. GR4 is designed for simple yet comprehensive use in bars, restaurants, stores and other leisure / retail environments.
Request for Quote
GR4 is designed for simple yet comprehensive use in bars, restaurants, stores and other leisure / retail environments.

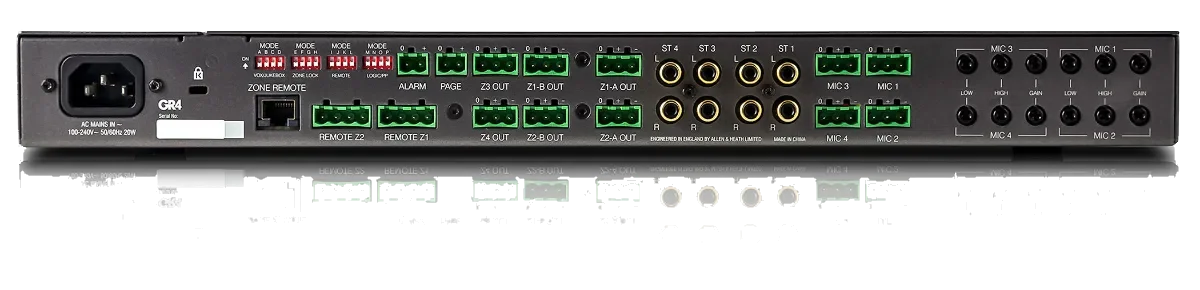

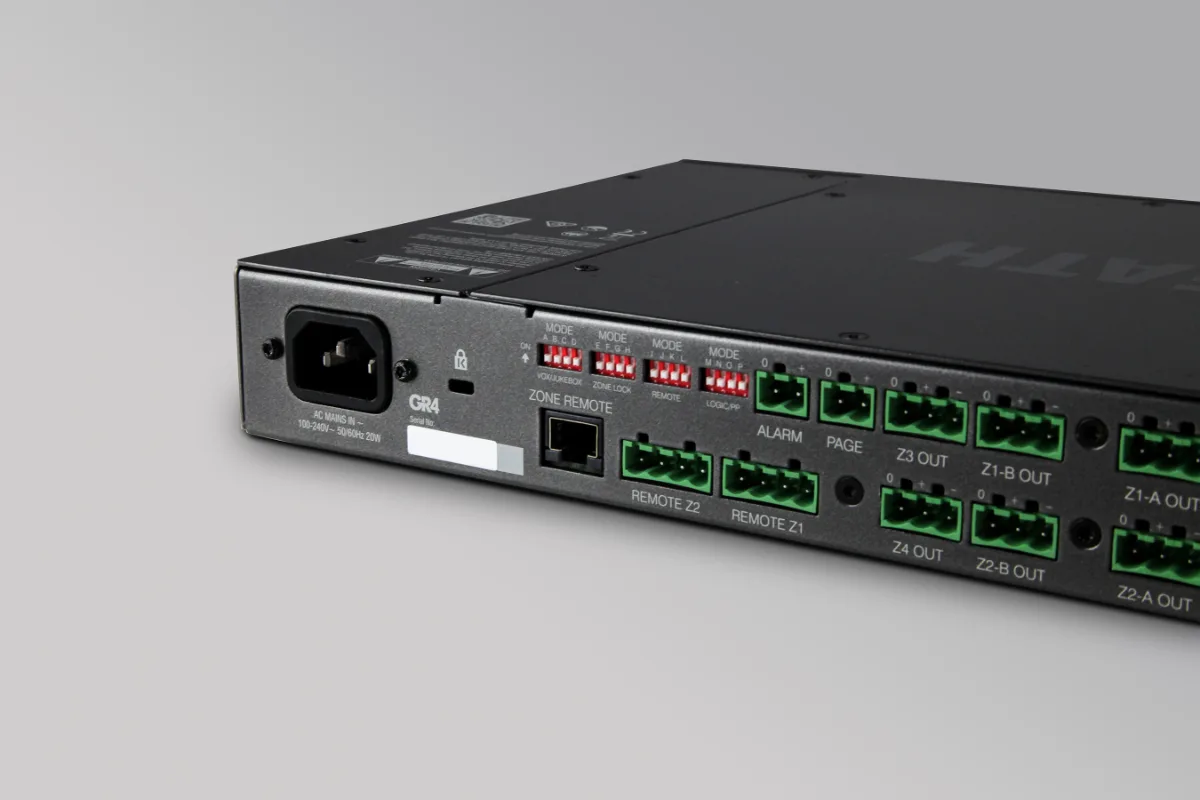

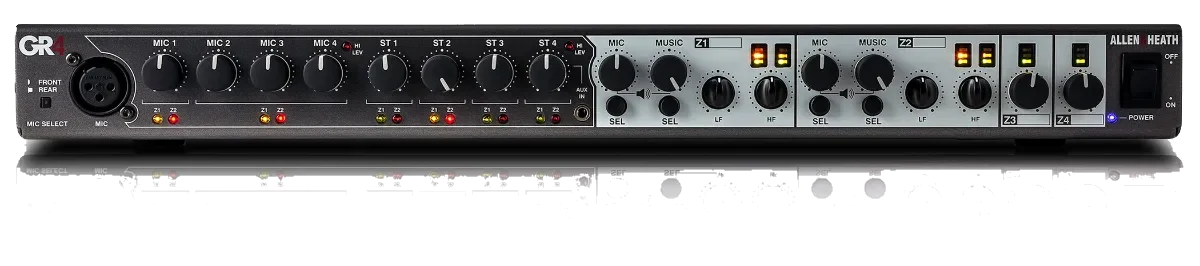

Four mic inputs on rear mount Phoenix connectors with MIC1 selectable to an optional front mounted XLR. Four stereo inputs on rear mount phono connectors. An additional front mounted 3.5mm jack socket overrides input 4 phono source.
Primary + Secondary Mic modes are perfect for controlling hierarchal microphone feeds such as simple paging announcements. Emergency mode is for use with 3rd party systems in emergency situations and mutes all inputs except MIC 1 on alarm contact closure. Jukebox mode provides a priority line input to the system for pre-recorded announcements or programme material such as Sports channels.

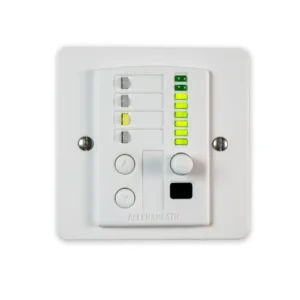

The PL-14 is an ‘intelligent’ remote controller for use with the Allen & Heath GR4 audio zone mixers. It provides the non-technical operator with local control of the music source selection and/or audio level. Up to two controllers may be connected, just one, one for each zone, or a single unit to simultaneously control both zones. A menu of setup options allows the installer to configure its function to match the specific requirements of each application. Additional switches may be wired for room combining situations and to disable the controller when the settings should not be changed. The optional PL-5 hand held infra-red remote controller adds wireless control, and additional features including the store and recall of up to 4 source/level pre-sets. The PL-14 can be mounted into a single unit wall box using the standard face plate provided, or furniture mounted using the cutting template details given here. It interfaces with the GR3/4 using standard CAT5 cables. The second controller daisy chains with the first for convenient single run cabling. Space is provided on the panel for custom labelling.
| Brand | Allen & Heath |
|---|---|
| Product Family | GR Series / Zone Mixers |
| Model | GR4 |
| Type | 4 Zone Mixer |
Tell us about your project and our team will get back to you with pricing, availability and the right configuration — usually within one business day.
Tell us your venue size, audience count, and event type. Unity Logics can recommend the right package.
Allen & Heath GR4
SKU: AH-GR4
