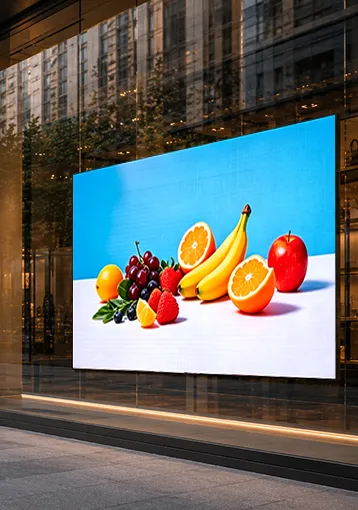

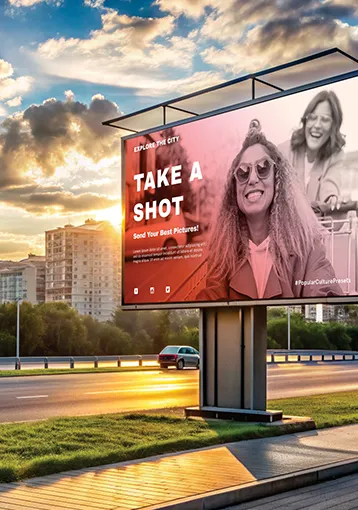

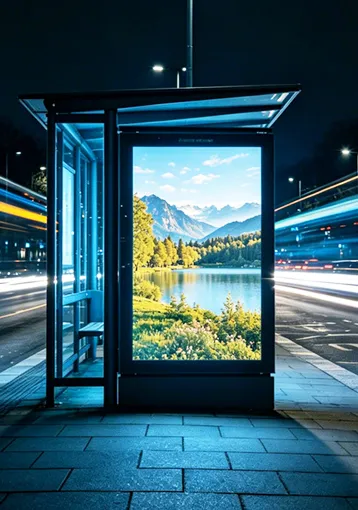

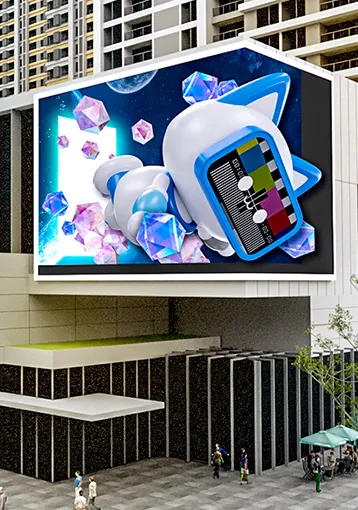

Digital out-of-home LED display for street advertising, transit shelters, buildings and retail.

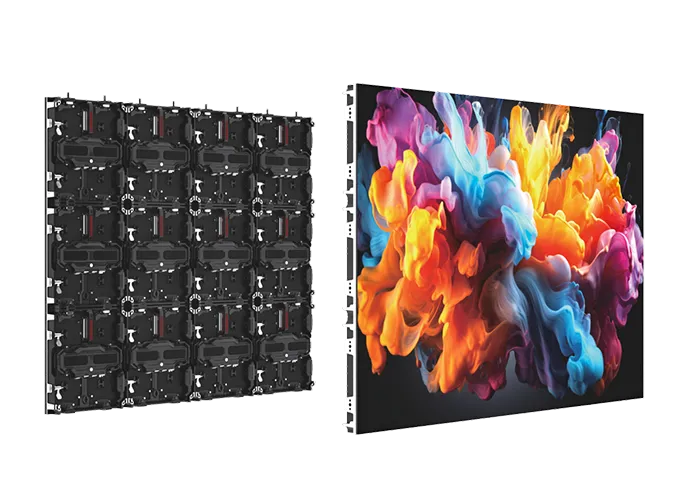

The NOX series LED display is an ultra-high-definition product developed for the outdoor LED display market.
Flip chip MIP technology, no welding pad block, high luminous efficiency, wider view angle.
No welding wire, reduce the failure rate of the lamp bead.
Light-emitting chip direct contact with the PCB, which improves heat dissipation.
7680Hz ultra-high refresh design, no fear of various shooting scenes.

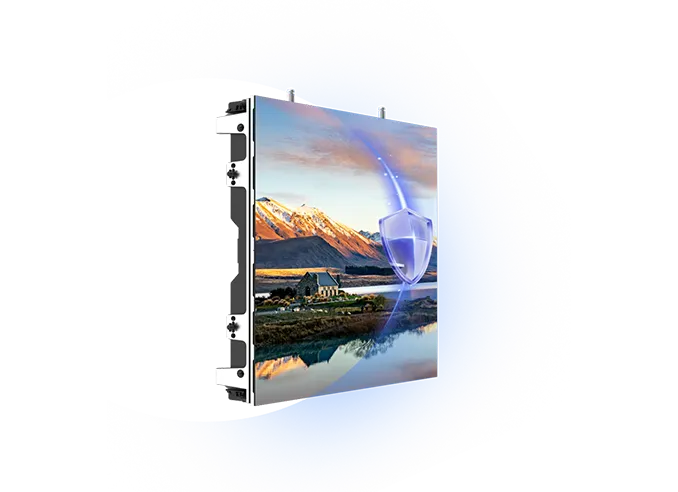

Equipped with a front MIP+GOB coating, offering full IP65 front and rear protection that is completely waterproof, moisture-proof, anti-static, and collision-resistant.
Single cabinet aspect ratio of 8:9 enables quick splicing into standard 16:9 display screens.

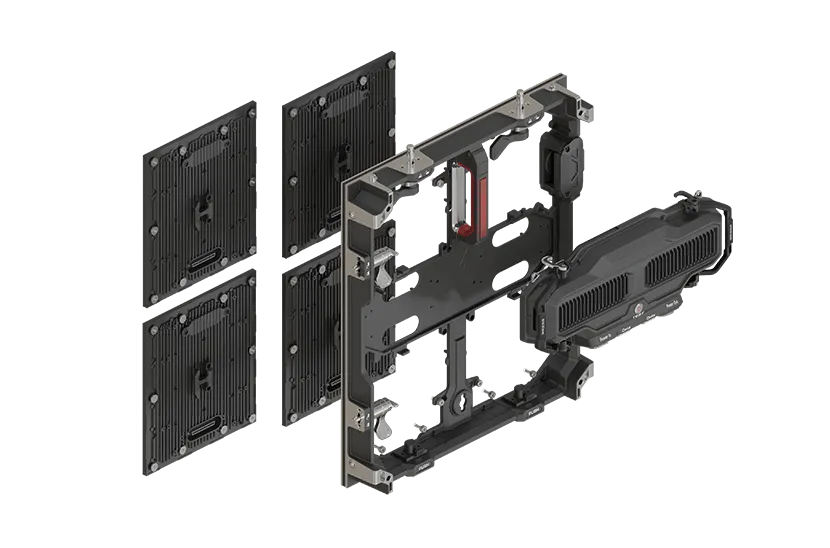

Fully modular cabinet architecture ensures fast, effortless maintenance.

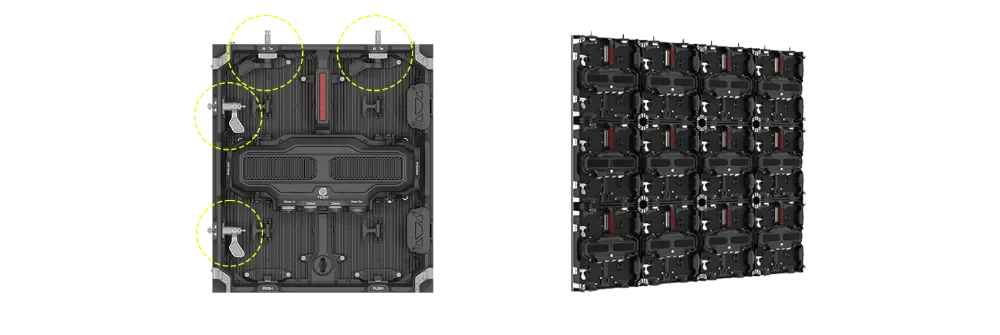

Precision fast-locking system for rapid, hassle-free installation.

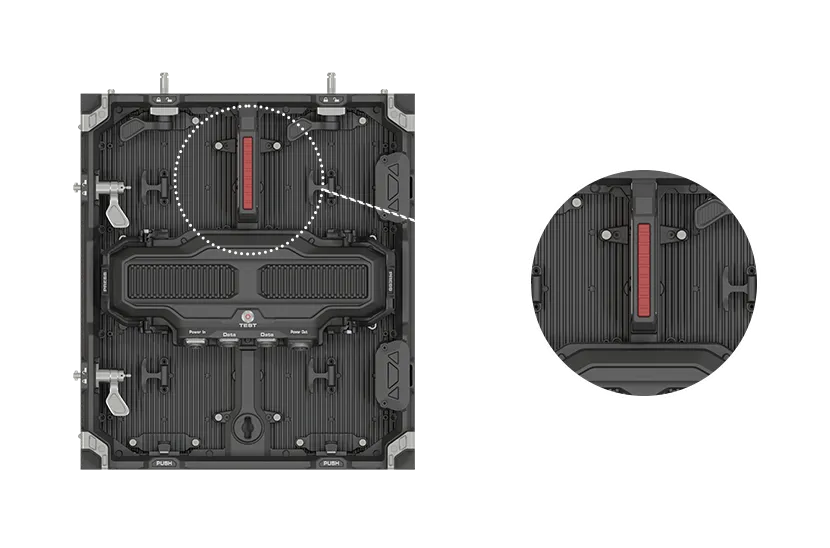

Integrated top handle simplifies handling during installation and eliminates accidental drop risks.
High order control system supports chroma brightness, full grayscale, and thermal correction, ultra-high refresh rate, wide color gamut, HDR picture display, and 16-bit high grayscale with low brightness.
Tap a model to select it — the highlighted column is your current selection.
| Model | 45E12 | 45E15 | 45E18 | 45E25 |
|---|---|---|---|---|
| Pixel Configuration | MIP | MIP | MIP | SMD |
| Pixel Pitch(mm) | 1.25 | 1.5 | 1.87 | 2.5 |
| Cabinet Size(mm) (WxHxD) | 480x540x83 | 480x540x83 | 480x540x83 | 480x540x83 |
| Cabinet Resolution (WxH) | 384x432 | 320x360 | 256x288 | 192x216 |
| Cabinet Weight(kg/cabinet) | 10 | 10 | 10 | 10 |
| Refresh Rate(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | ≤4,000 | ≤4,000 | ≤4,000 | ≤6,500 |
| Working Voltage | AC 110V~240V,50~60Hz | AC 110V~240V,50~60Hz | AC 110V~240V,50~60Hz | AC 110V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 |
