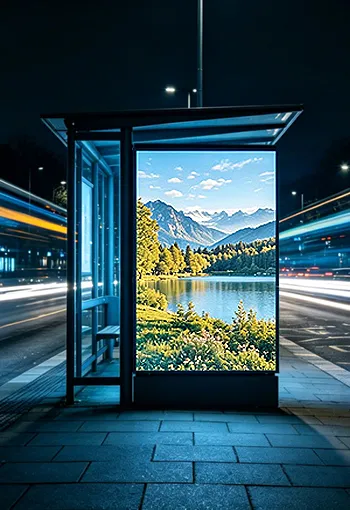

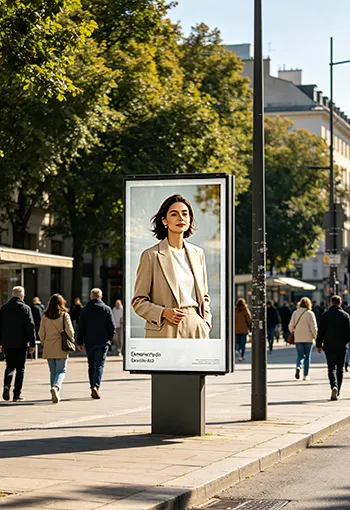

Second-generation ultra-HD outdoor MIP display for advertising, bus stations, buildings and bridges.
Recommended: 10% extra spare parts (modules, receiving cards, power supplies), approx. from $88 (≈5% of the order, updates with your selection).
Shipping and transportation are quoted separately.
Price range: $1,750.00 through $3,265.00
The NOX Gen2 series MIP outdoor LED display is an ultra-high-definition product developed for the outdoor LED display market.
Flip chip MIP technology, no welding pad block, high luminous efficiency, wider view angle. No welding wire, reduce the failure rate of the lamp bead. Light-emitting chip direct contact with the PCB, which improves heat dissipation.

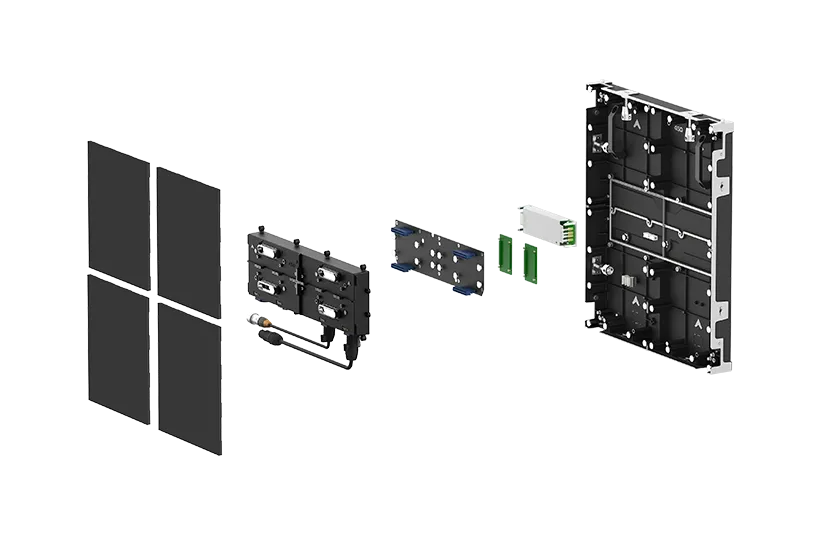

Frame, power box, modules are modular design for fast maintenance.

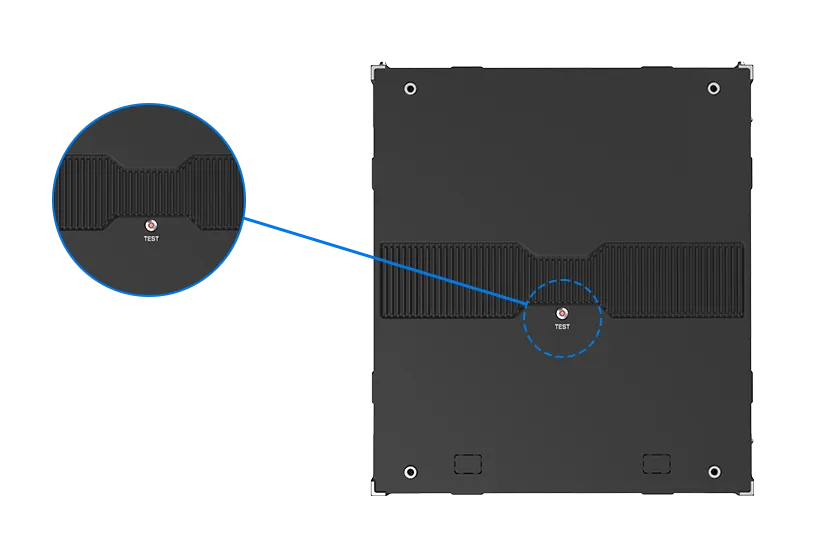

The cabinet features an integrated test button to facilitate convenient testing and maintenance.
When two display units are joined side by side. they form a 16:9 aspect ratio, making it easy to create a large screen with standard resolution.
All components can be full front maintenance, no need operation space in rear side.
Different size cabinet can splicing together to maximum the video wall size requirment.
Tap a model to select it — the highlighted column is your current selection.
| Model | 45G12 | 45G15 | 45G18 | 45G25 |
|---|---|---|---|---|
| Pixel Configuration | MIP | MIP | MIP | SMD |
| Pixel Pitch(mm) | 1.25 | 1.5 | 1.87 | 2.5 |
| Cabinet Size(mm) (WxHxD) | 480x540x63 | 480x540x63 | 480x540x63 | 480x540x63 |
| Cabinet Resolution (WxH) | 384x432 | 320x360 | 256x288 | 192x216 |
| Cabinet Weight(kg/cabinet) | 10 | 10 | 10 | 10 |
| Refresh Rate(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | ≤4,000 | ≤4,000 | ≤4,000 | ≤6,500 |
| Viewing Angle (H/V) | 170°/170° | 170°/170° | 170°/170° | 160°/160° |
| Working Voltage | AC 110V~240V,50~60Hz | AC 110V~240V,50~60Hz | AC 110V~240V,50~60Hz | AC 110V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 |
An outdoor LED display for signage, storefronts and advertising, bright enough for direct sun and built for weather. Not sure which size or pitch you need? Try the LED wall selector.
