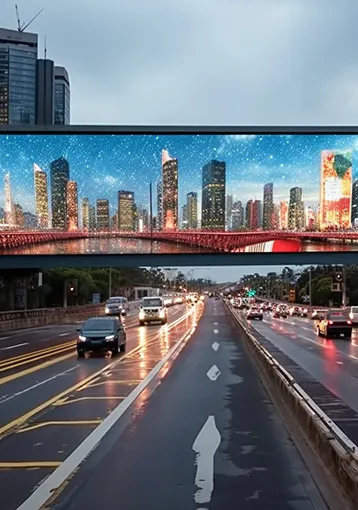

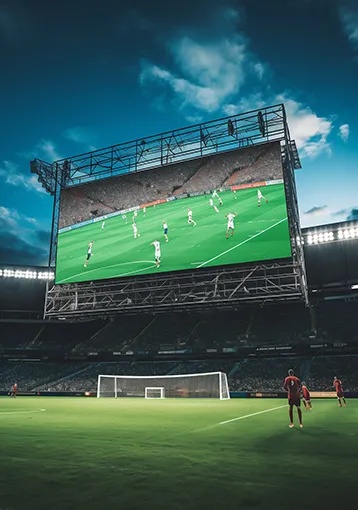

High-protection outdoor LED display for billboards, building façades, stadiums and pedestrian bridges.
Recommended: 10% extra spare parts, typically around 5% of the order total.
Shipping and transportation are quoted separately.
The Obesum series LED display is a high protection LED display product developed for the outdoor LED display market.
Smooth image without stutter, excellent viewing experience.

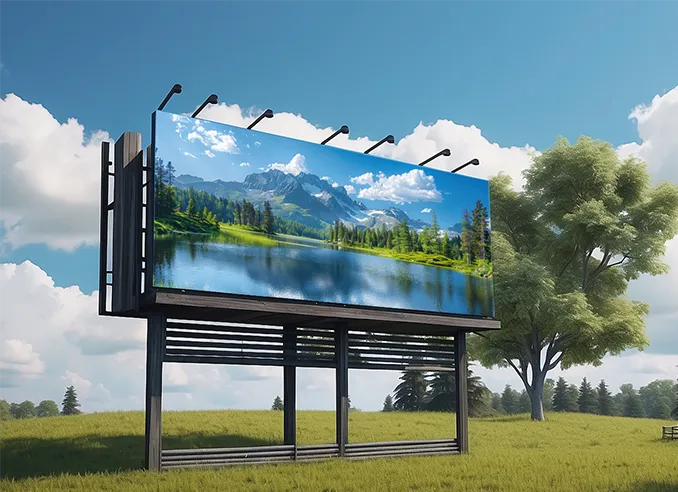

Dazzling and vivid images, to make you see the most natural and real world.
The product uses a common cathode design to reduce heat generation, lower screen temperature and improve stability and longevity.
IP66 protection level, integrated all-aluminum design, with corrosion resistance, high melting pointflame retardant and fireresistance, moisture resistance and salt spray resistance, can work well inthe seaside environment for a long time.
Frame, power box, modules are modular design for fast front and rear maintenance.
Tap a model to select it — the highlighted column is your current selection.
| Model | P4.44 | P5.7 | P6.67 | P8 | P10 | P1.95 | P2.6 | P2.97 | P3.91 |
|---|---|---|---|---|---|---|---|---|---|
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| Pixel Pitch(mm) | 4.44 | 5.7 | 6.67 | 8 | 10 | 1.95 | 2.6 | 2.97 | 3.91 |
| Module Size(mm) (WxHxD) | 480x320x16 | 480x320x16 | 480x320x16 | 480x320x16 | 480x320x16 | 250x250x18 | 250x250x18 | 250x250x18 | 250x250x18 |
| Module Resolution (WxH) | 108x72 | 86x56 | 72x48 | 60x40 | 48x32 | 128x128 | 96x96 | 84x84 | 64x64 |
| Cabinet Weight(kg/cabinet) | 25 | 25 | 25 | 25 | 25 | 16 | 16 | 16 | 16 |
| Refresh Rate(Hz) | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 |
| Grayscale(bit) | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Brightness(nits) | 5,000~12,000 | 5,000~12,000 | 5,000~12,000 | 5,000~12,000 | 5,000~12,000 | 5,000 | 5,000 | 5,000 | 5,000 |
| Viewing Angle (H/V) | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
An outdoor LED display for signage, storefronts and advertising, bright enough for direct sun and built for weather. Not sure which size or pitch you need? Try the LED wall selector.
