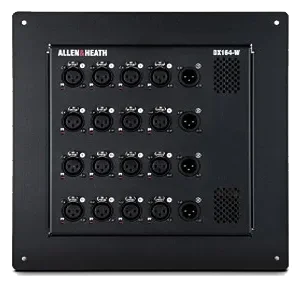

16in / 4out 96kHz Expander
+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.

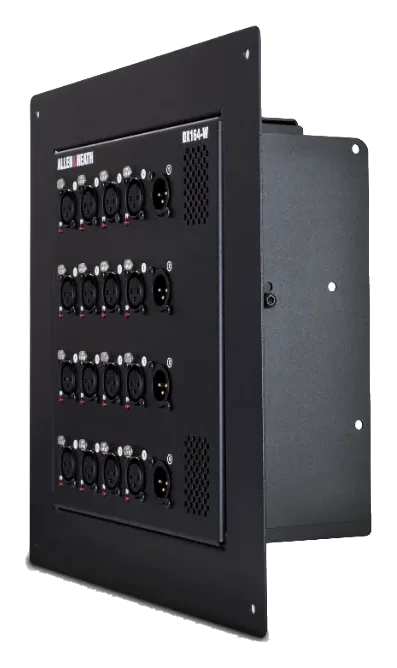

The reversible mounting frame allows for in-wall or on-wall mounting. With custom brackets, the unit can be fitted in a standard NEMA box, or mounted in a floor pocket for stage use.
The DX164-W can be placed up to 100m away from the mixer for maximum flexibility of positioning. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX Expander for additional remote I/O.
The IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup input is also provided.
| Brand | Allen & Heath |
|---|---|
| Product Family | DX I/O |
| Model | DX164-W |
| Type | 16in / 4out 96kHz Expander |
