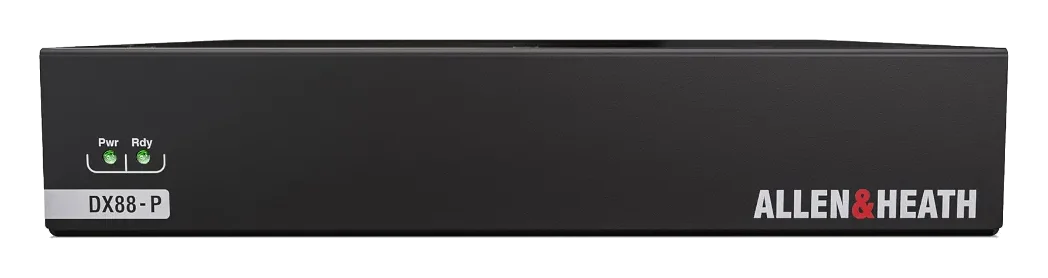

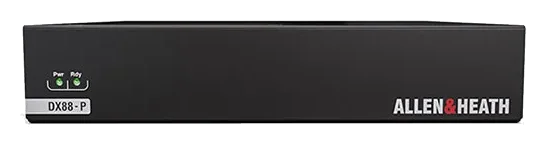

Allen & Heath DX88-P

8in / 8out 96kHz Expander

Recommended: 10% extra spare parts, typically around 5% of the order total.
Shipping and transportation are quoted separately.

Request for Quote

BrandAllen & Heath
Product FamilyDX I/O
ModelDX88-P
SKU AH-DX88-P Categories , , Brand:

8in / 8out 96kHz Expander

8 Ins + Outs

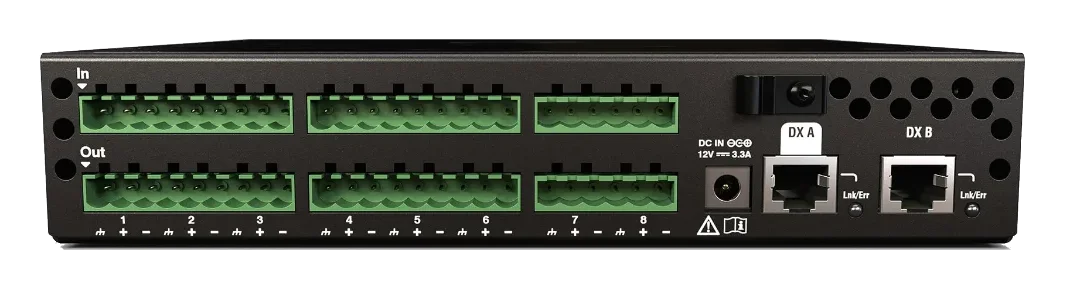

Eight mic/line inputs with +60dB of gain, phantom power and -20dB pad, and eight line outputs, all on Phoenix/Euroblock connectors.

DX88-P

Easily Add Phoenix / Euroblock Inputs and Outputs via a DX Connection

Maximum Flexibility

The DX88-P can be placed up to 100m away from the mixer for maximum flexibility of positioning. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via the DX A port. A second RJ45 port, DX B, is provided for daisy-chaining to a downstream DX Expander for additional remote I/O.

Install Options

An optional rack mount kit is available for installation of up to two DX88-P units in a 1U 19″ slot to interface with analogue equipment such as an AV switcher. The DX88-P can also be rack mounted alongside a DX Hub or GPIO module by combining the optional rack kit with the DX Hub / GPIO rack kit.

Where the Allen & Heath DX88-P fits

Remote I/O that puts microphone inputs on stage and runs a single network cable back to the mixer, cutting heavy analog snakes in churches, theaters and venues. Ask us to confirm which Allen & Heath mixers and protocol it works with for your system. We design and install systems like this; see church AV integration and commercial AV installation.

Pairs well with

Unity Logics supplies, installs and supports this equipment across Southern California. Request a quote or book a free site survey.
