DX Expander Hub
Each of the 4 DX sockets can support up to 2 DX168/DX164-W/DX012 Expanders or 1 DX32 expander.

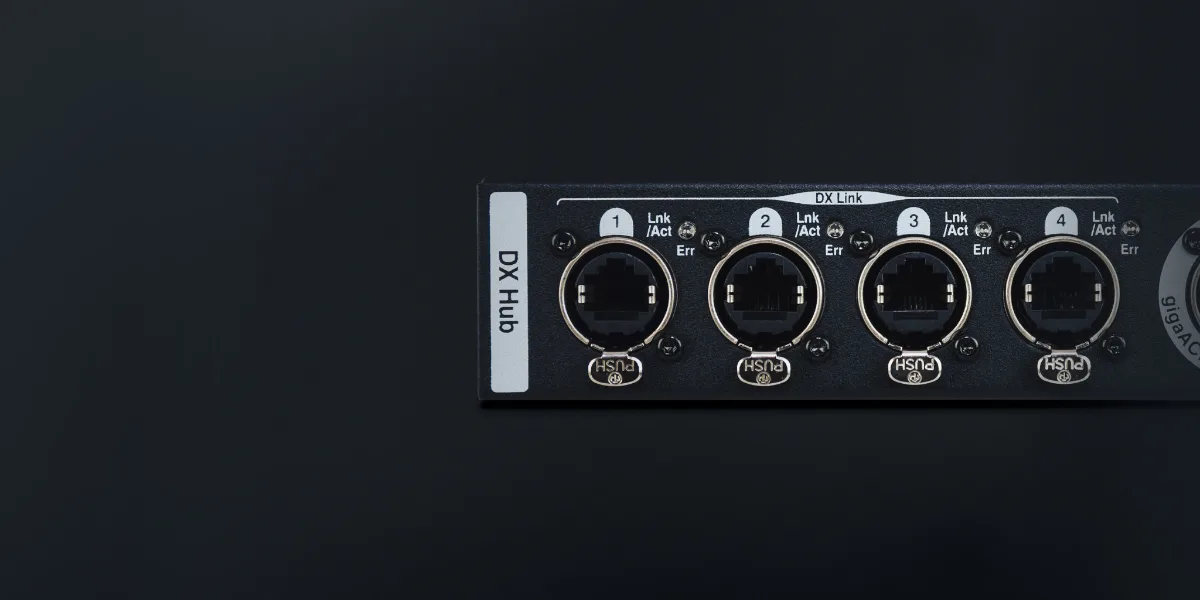

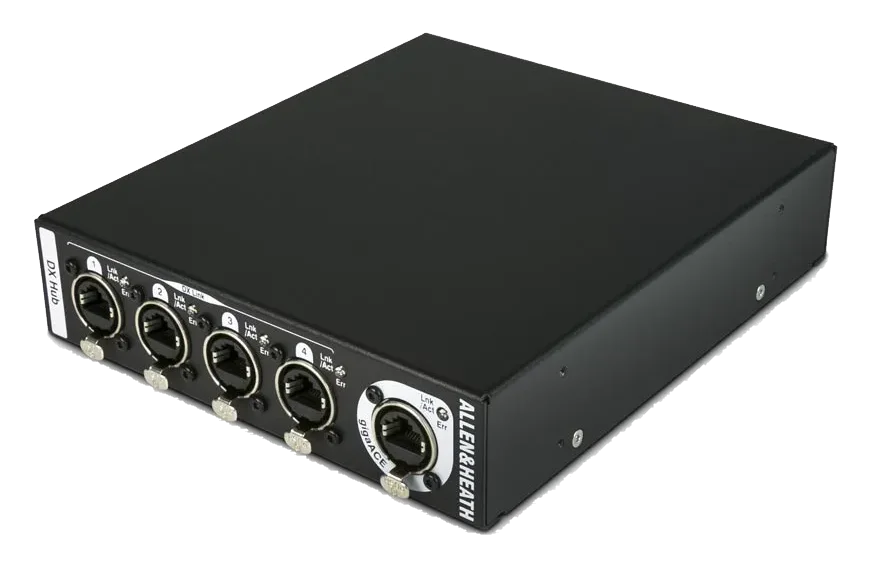

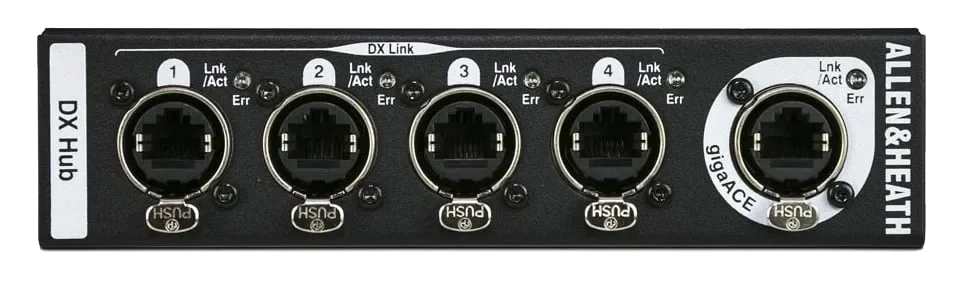

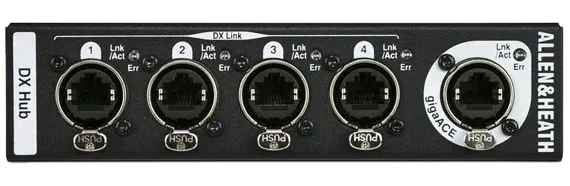

DX Hub provides 4 DX Link ports each carrying 32×32 channels of 96kHz audio, that can be used to connect to DX expander units. Up to 2 DX expanders can be connected to each DX Link port allowing up to 128 remote inputs and 64 remote outputs to be added to the system. Multiple DX Hubs can be used for further expansion, or for dual redundancy (dLive only)
DX Hub is particularly suited to Install and Commercial Audio applications and any environment where it is desirable to run a single “trunk” CAT5e cable to the DX Hub from the AHM, dLive, Avantis or SQ system. An optional rack mount kit is available for installation in a 1U 19″ rack space.
DX Hub can be connected to any AHM, SQ, Qu*, or Avantis mixer via SLink, or any Avantis mixer or dLive system fitted with a gigaACE I/O module. *96kHz Qu models only
Remote I/O that puts microphone inputs on stage and runs a single network cable back to the mixer, cutting heavy analog snakes in churches, theaters and venues. Ask us to confirm which Allen & Heath mixers and protocol it works with for your system. We design and install systems like this; see church AV integration and commercial AV installation.
Unity Logics supplies, installs and supports this equipment across Southern California. Request a quote or book a free site survey.
| Brand | Allen & Heath |
|---|---|
| Product Family | DX I/O |
| Model | DX Hub |
| Type | DX Expander Hub |
