Fine-pitch MIP display that assembles quickly into curves and circles — ideal for studios, museums, airports and feature walls.
Recommended: 10% extra spare parts (modules, receiving cards, power supplies), approx. from $49 (≈5% of the order, updates with your selection).
Shipping and transportation are quoted separately.
Price range: $980.00 through $3,120.00

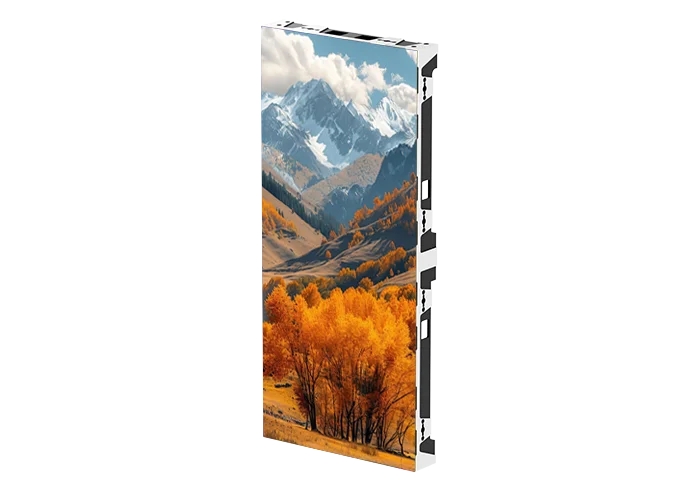

The ArcX series LED display is a fine pitch LED display product that can be flexibly and quickly spliced.
16-bit grayscale provides smooth transitionsand enhancesimage detail.
Compared to traditional soft modules, Flex series module just uses a hard link interface connect to HUB board, without ribbon cable andpower cables, which reduces the failure rate of the wiring and improvesstability.

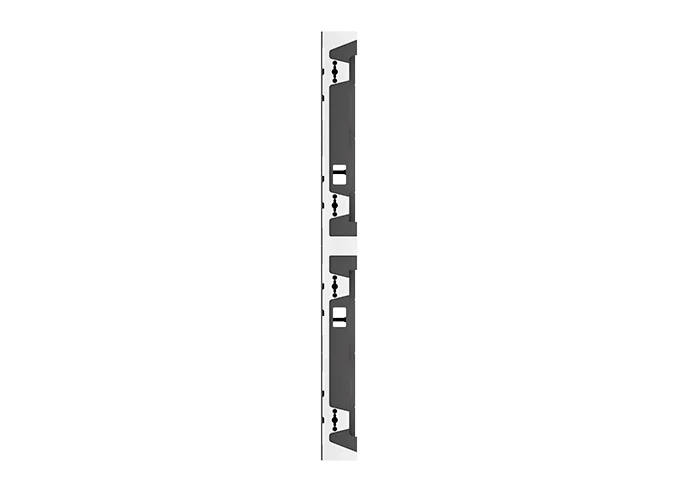

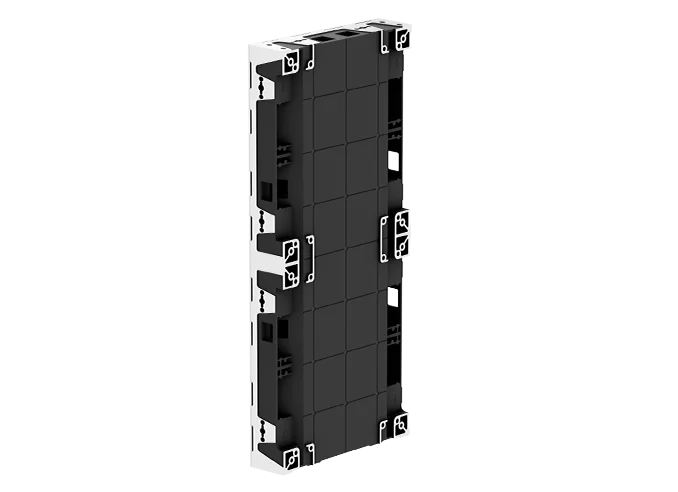

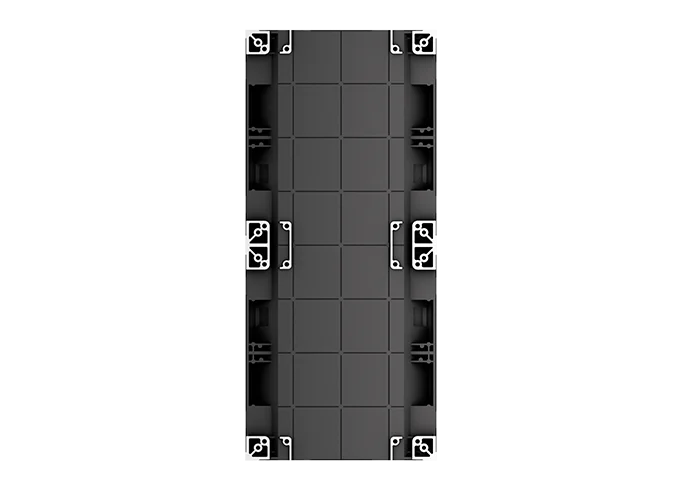

CNC five-dimensional processing is used to create curved surfaces on die-cast aluminum cabinets, along with soft and flexible PCBs and high-precision customized CNC angle connection plates, to deliver excellence.
Minimum diameter 1,145.9mm, consisting of 12cabinets arranged to form a circular display.
Surface treatment with G0B coating, providing surface water-resistant, dust-resistant, impact-resistant and anti-static.
Tap a model to select it — the highlighted column is your current selection.
| Model | 36A09 | 36A12 | 36A15 | 36A18 | 36A25 | 36A37 |
|---|---|---|---|---|---|---|
| Pixel Configuration | MIP | MIP | MIP | MIP | MIP | MIP |
| Pixel Pitch(mm) | 0.9375 | 1.25 | 1.5626 | 1.875 | 2.5 | 3.75 |
| Cabinet Size(mm)(WxHxD) | 300x675x58 | 300x675x58 | 300x675x58 | 300x675x58 | 300x675x58 | 300x675x58 |
| Cabinet Resolution(WxH) | 320x720 | 240x540 | 192x432 | 160x360 | 120x270 | 80x180 |
| Cabinet Weight(kg/cabinet) | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 |
| Refresh Rate(Hz) | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 | 3,840-7,680 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| Viewing Angle (H/V) | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
A creative LED panel for curves, columns and custom shapes on stages, in retail and in architectural designs. Not sure which size or pitch you need? Try the LED wall selector.
