Flexible soft-module LED that wraps columns and curves for studios, museums, retail and feature walls.
Recommended: 10% extra spare parts, typically around 5% of the order total.
Shipping and transportation are quoted separately.
The YOGA series LED display is a soft LED display product that can be flexibly and quickly spliced.
Soft and front service modules, cabinet can be customized according to specific project.Both concave and convex available. Minimum diameter can be only 763.9mm.
Yoga series allows for seamless convex or concave LED designs where traditional flat / hard panels will not work

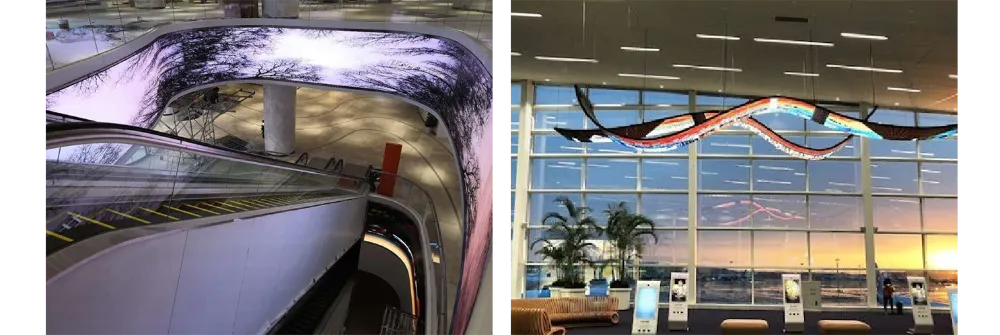

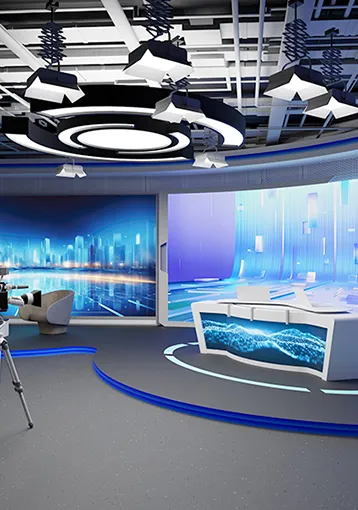

This product is widely used in various rental scenarios, such as command center, shopping mall, commercial display, stadiums and more.
Through the TOP-COB technology, the module surface is fully sealed with epoxy resin, providing complete protection for the product against various external influences.
PCB board adopting flexible soft board, with only 8.6mmmodule thickness, ultra-thin in design, occupying small space.
Tap a model to select it — the highlighted column is your current selection.
| Model | YG12 | YG16 | YG18 | YG25 | YG3 | YG4 |
|---|---|---|---|---|---|---|
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD | SMD |
| Pixel Pitch(mm) | 1.25 | 1.56 | 1.87 | 2.5 | 3 | 4 |
| Module Size(mm)(WxH) | 240x120 | 240x160 | 270x120 | 240x160 | 240x120 | 240x120 |
| Module Resolution(WxH) | 192x96 | 144x96 | 144x64 | 96x64 | 80x40 | 60x30 |
| Refresh Rate(Hz) | ≥1,920 | ≥1,920 | ≥1,920 | ≥1,920 | ≥1,920 | ≥1,920 |
| Grayscale(bit) | 14 | 14 | 14 | 14 | 14 | 14 |
| Brightness(nits) | 600 | 600 | 600 | 800 | 800 | 800 |
| Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
