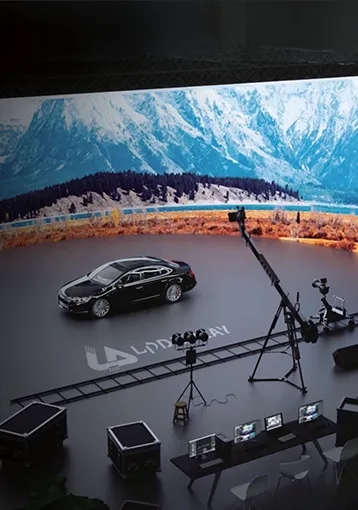

Lightweight touring LED panel for stages, studios, auto shows and performances, with indoor and outdoor versions.
Recommended: 10% extra spare parts (modules, receiving cards, power supplies), approx. from $23 (≈5% of the order, updates with your selection).
Shipping and transportation are quoted separately.
Price range: $445.00 through $1,360.00
The LA series LED display is a new product designed for the stage scenes. The product has the advantages of light weight, high flatness, easy installation and maintenance, etc.

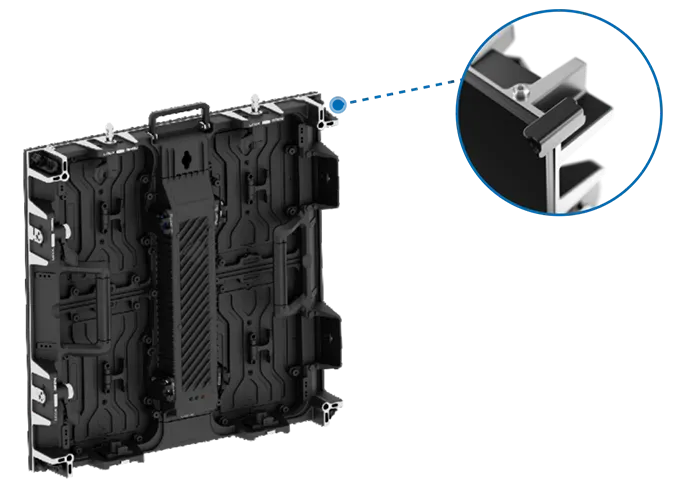

The cabinet is equipped with a corner protector design, safeguarding the lamp beads’ edges from damage during transit.
Modules support front and rear maintenance, the power box supports rear maintenance.

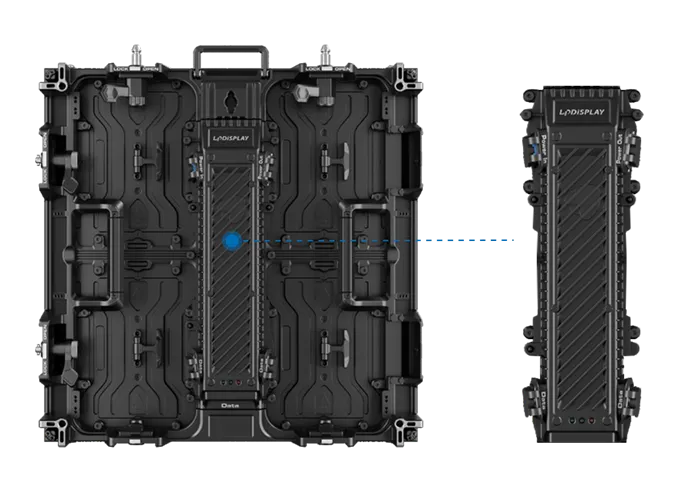

Power box back cover cooling plate design,help speed up heat dissipation.

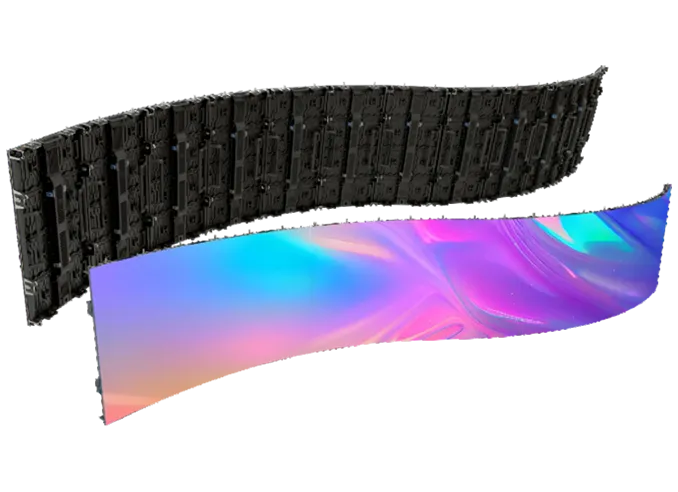

-5°to+5° curve lock for concave and convex application.
90 degree cube shape installation, concave and convex installations
500x1,000mm and 500x500mm cabinet vertical splicing
Tap a model to select it — the highlighted column is your current selection.
| Model | LA19 | LA26 | LA29 | LA39 | LA290 | LA390 | LA480 | LA590 |
|---|---|---|---|---|---|---|---|---|
| Usage Scenario | Indoor | Indoor | Indoor | Indoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| Pixel Pitch(mm) | 1.95 | 2.61 | 2.97 | 3.91 | 2.9 | 3.91 | 4.81 | 5.9 |
| Cabinet Size(mm) (WxHxD) | 500x500x68 | 500x500x68 | 500x500x68 500x1,000x68 | 500x500x68 500x1,000x68 | 500x500x72 500x1,000x72 | 500x500x72 500x1,000x72 | 500x500x72 500x1,000x72 | 500x500x72 500x1,000x72 |
| Cabinet Resolution (WxH) | 256x256 | 192x192 | 168x168 168x336 | 128x128 128x256 | 168x168 168x336 | 128x128 128x256 | 104x104 104x208 | 84x84 84x168 |
| Cabinet Weight(kg/cabinet) | 6.9 | 6.9 | 6.9/11.5 | 6.9/11.5 | 7.7/12.8 | 7.7/12.8 | 7.7/12.8 | 7.7/12.8 |
| Refresh Rate(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 800 | 1,000 | 1,000 | 1,200 | 4,000 | 4,500 | 4,500 | 5,000 |
| Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/140° | 160°/140° | 160°/140° | 160°/140° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
A rental and stage LED panel built for fast setup, flown or ground-stacked, for events, stages, touring and churches that move their screens. Not sure which size or pitch you need? Try the LED wall selector.
Unity Logics supplies, installs and supports this equipment across Southern California. Request a quote or book a free site survey.
Tell us about your project and our team will get back to you with pricing, availability and the right configuration — usually within one business day.
Tell us your venue size, audience count, and event type. Unity Logics can recommend the right package.
Unity LA Series
SKU: UL-LED-FUSION
Variant
Start Your Inquiry
Select your project type so we can ask the right questions.
Panels, NovaStar processor, cabling and frame in one price. Installation and shipping quoted separately.
8.2′ × 4.9′ P2.6 Indoor – LA Series8.2′ × 4.9′ · P2.6$12,850
9.8′ × 6.6′ P2.6 Indoor – LA Series9.8′ × 6.6′ · P2.6$19,250
13.1′ × 6.6′ P2.6 Indoor – LA Series13.1′ × 6.6′ · P2.6$24,700
13.1′ × 8.2′ P2.6 Indoor – LA Series13.1′ × 8.2′ · P2.6$30,200
16.4′ × 9.8′ P2.6 Indoor – LA Series16.4′ × 9.8′ · P2.6$43,900All 18 LA Series packagesOther pitches and sizes, filter by budget→Most LED walls look alike on a spec sheet. The difference is in the parts you can’t see. We choose each one for the job, and we tell you exactly what they are.
