Premium COB rental panel for concerts, press events, esports and summits, with curve locks and tool-light rigging.

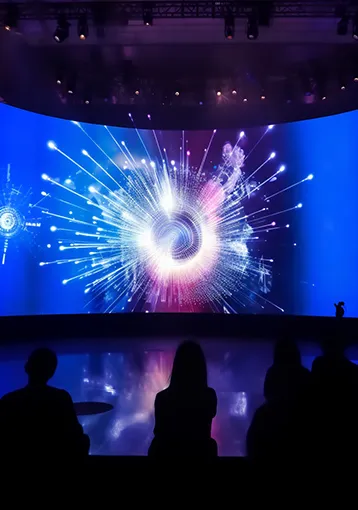

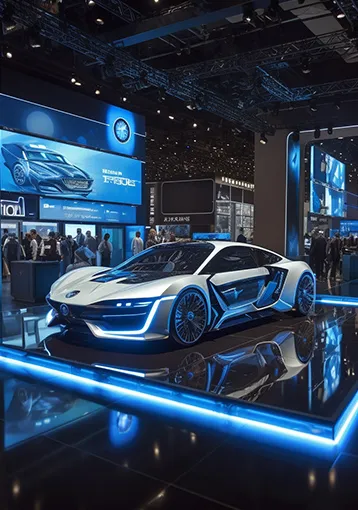

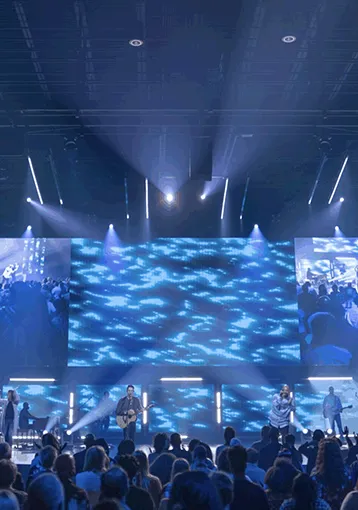

The LX series COB rental LED display is a new product designed for high-end rental market. It is widely used in various performance activities, such as concert, press conference, e-sports event, industry summit, car show, and other indoor and outdoor activities.

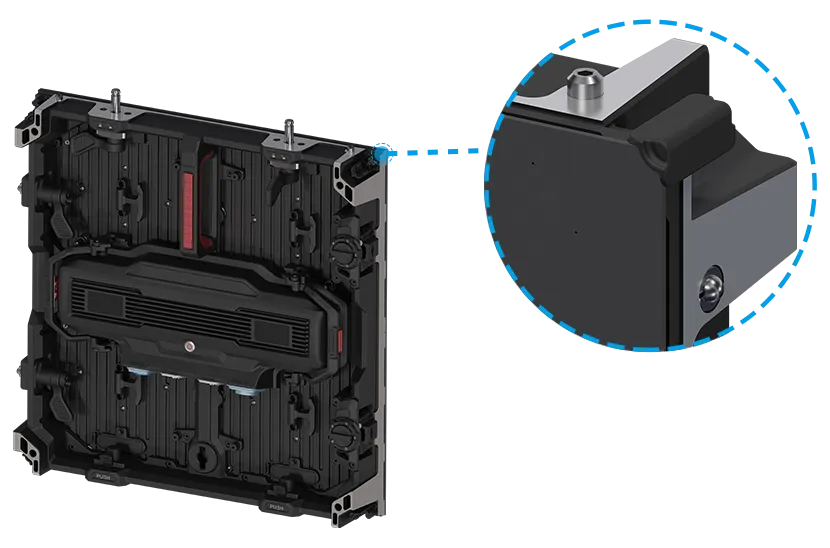

Curve lock optional with -6","3, 0, 3°, 6°, for flexible installation.
The hanging beam and ground beam are designed as a two-in-one system, allowing the hanging beam as aground beam when paired with the base.

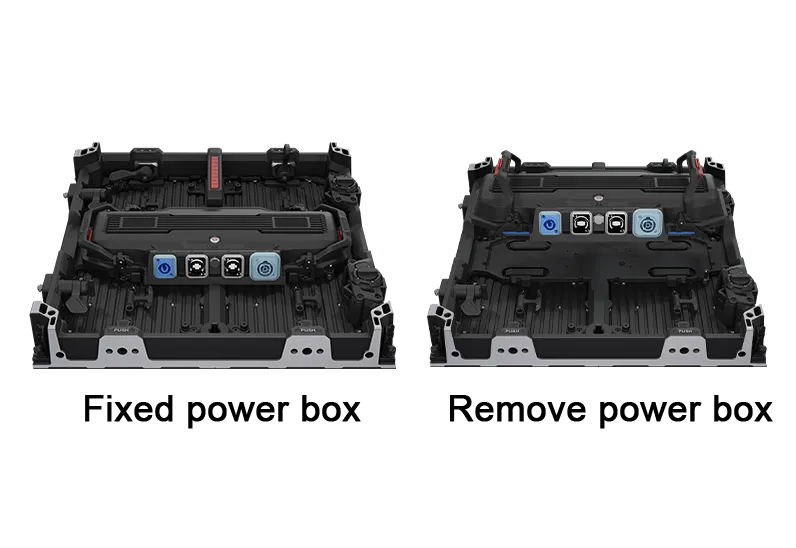

Unlike traditional power boxes that are fixed with screws, the LX series power box uses a snap-on design, allowing for quick replacement of the entire power box in the event of a fault.

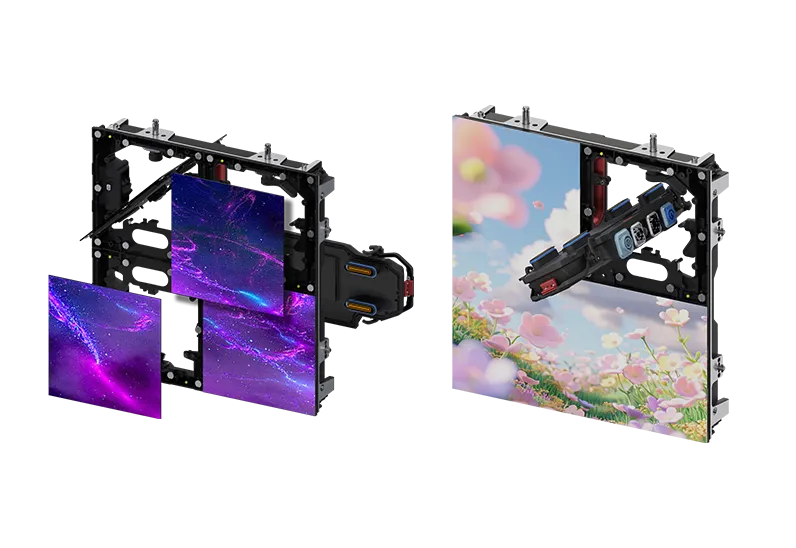

Cabinet modular design, front and rear maintenance, convenient and quick.
Tap a model to select it — the highlighted column is your current selection.
| Model | LX1.5 | LX2.2 |
|---|---|---|
| Pixel Configuration | COB | COB |
| Pixel Pitch(mm) | 1.56 | 2.27 |
| Cabinet Size(mm) (WxH) | 500x500 | 500x500 |
| Cabinet Resolution (WxH) | 320x320 | 220x220 |
| Cabinet Weight(kg/cabinet) | 7.8 | 7.8 |
| Refresh Rate(Hz) | 7,680 | 7,680 |
| Grayscale(bit) | 16 | 16 |
| Brightness(nits) | ≤1,500 | ≤1,500 |
| Max. Power Consumption(W/㎡) | ≤450 | ≤450 |
| Avg. Power Consumption(W/㎡) | ≤150 | ≤150 |
| Viewing Angle (H/V) | 170°/170° | 170°/170° |
| Working Voltage | AC 110V~240V,50~60Hz | AC 110V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 |
