16.4′ × 9.8′ P1.56 indoor LED wall · 60 panels · 3200 × 1920 px · NovaStar VX1000 Pro included. Installation quoted separately.
$72,000.00

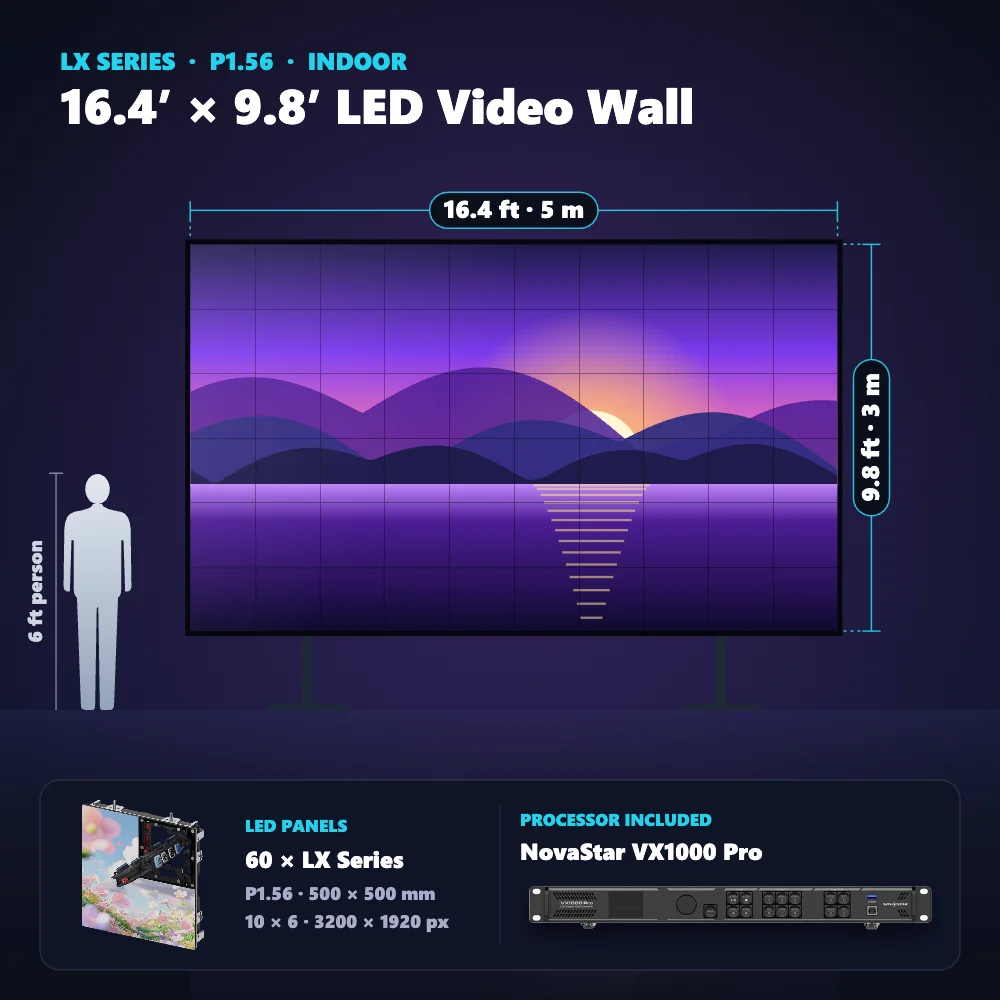

Turn-key 16.4′ × 9.8′ (5 × 3 m) indoor LED video wall built from 60 Unity LX Series COB panels at P1.56 pixel pitch, for 3200 × 1920 px resolution. Premium series. Ideal for: Concerts, press events, esports and live production.
Quoted separately: installation and calibration (after a free site survey). Ground support, flight cases and custom sizes available on request.
| Screen size | 16.4′ × 9.8′ (5 × 3 m) |
|---|---|
| Pixel pitch | P1.56 mm |
| Resolution | 3200 × 1920 px |
| Panels | 60 (10 × 6), 500 × 500 mm |
| LED type | COB |
| Brightness | up to 1,500 nits |
| Environment | Indoor |
| Processor | NovaStar VX1000 Pro |
Panel details: Unity LX Series. Need a different size or pitch? Request a quote and we'll configure it.
| Pixel Pitch | P1.56 |
|---|---|
| LED Type | COB |
| Environment | Indoor |
| Screen Size | 16.4′ × 9.8′ |
| Series | Unity LX Series |
Tell us about your project and our team will get back to you with pricing, availability and the right configuration — usually within one business day.
Tell us your venue size, audience count, and event type. Unity Logics can recommend the right package.
