Premium all-in-one LED meeting display (108″–217″) with 1,000-nit brightness, touch and 9-way screen sharing.

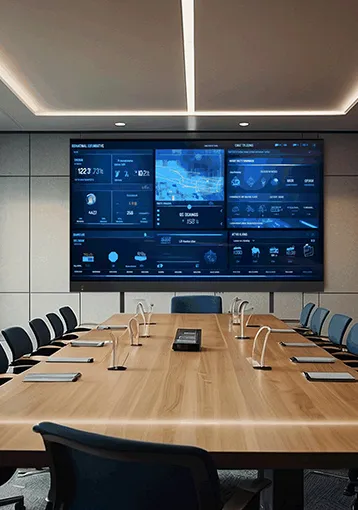

The EVA PAD series LED display is an all-in-one smart LED display designed for indoor conference market.

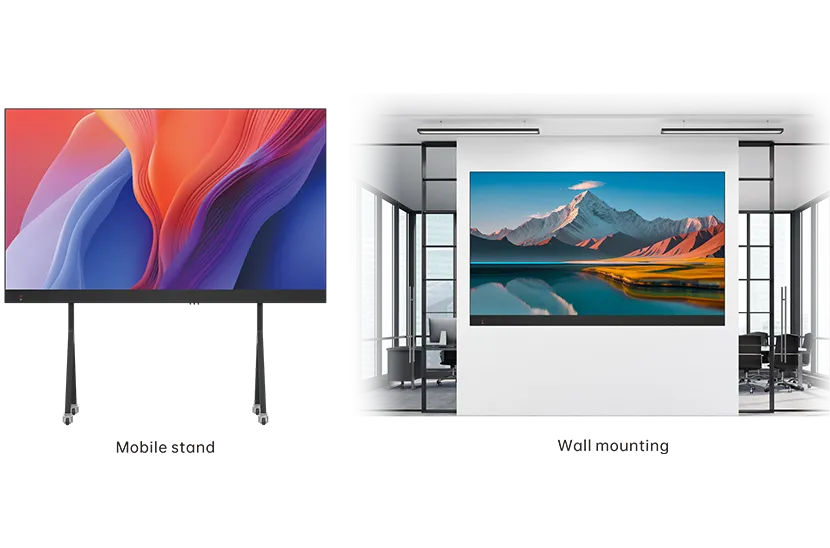

The product offers multiple installation options, allowing for either wheel-based floor installation or fixed mounting to walls.
It can expand the color range, covering a broader color space, resulting in a more realistic and vivid image.
Interactive function options for touch scenario, 10 point touch.

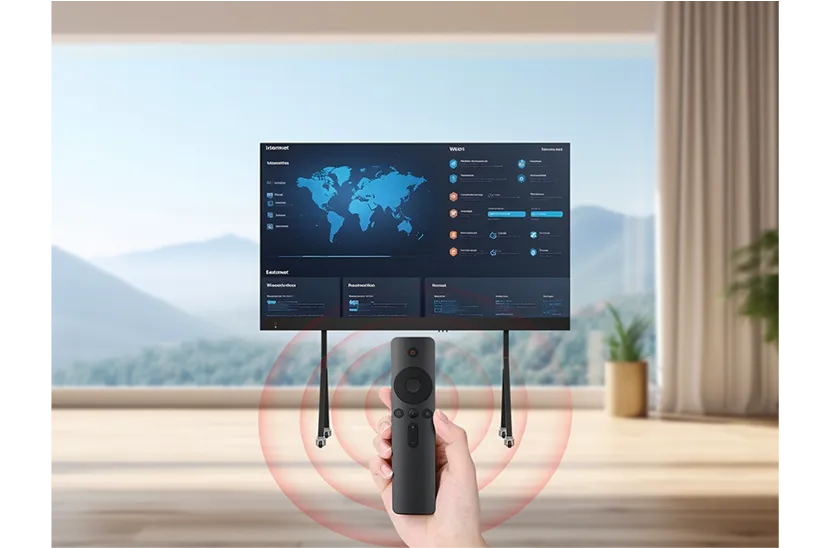

With the remote control, it is easy to adjust volume, brightness, and open files to play.
Supports screen mirroring of PC, smartphone and ipad.
Share screens from up to 9 devices simultaneously.
Tap a model to select it — the highlighted column is your current selection.
| Model | 108-2K | 130-2K | 136-2K | 163-2K | 217-2K | 108-4K | 130-4K | 136-4K | 163-4K | 217-4K |
|---|---|---|---|---|---|---|---|---|---|---|
| Pixel Configuration | COB/SMD | COB | COB/SMD | SMD | SMD | COB | COB | COB | COB | COB |
| Pixel Pitch(mm) | 1.25 | 1.5 | 1.56 | 1.875 | 2.5 | 0.625 | 0.75 | 0.78 | 0.93 | 1.25 |
| Display Size(mm) (WxH) | 2,400x1,350 | 2,880x1,620 | 3,000x1,687.5 | 3,600x2,025 | 4,800x2,700 | 2,400x1,350 | 2,880x1,620 | 3,000x1,687.5 | 3,600x2,025 | 4,800x2,700 |
| Resolution (WxH) | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 | 3,840x2,160 |
| Overall Weight(kg) | 80 | 115 | 120 | 172 | 305 | 80 | 115 | 120 | 174 | 305 |
| Refresh Rate(Hz) | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 | 3,840~7680 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 | 1,000 |
| Color Temp(K) | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Control Panel Type | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel |
| Interface | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 |
| WIFI Mode | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
