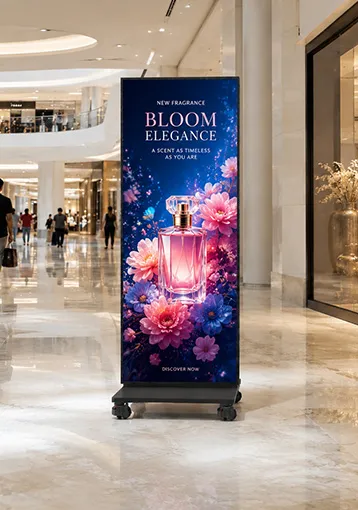

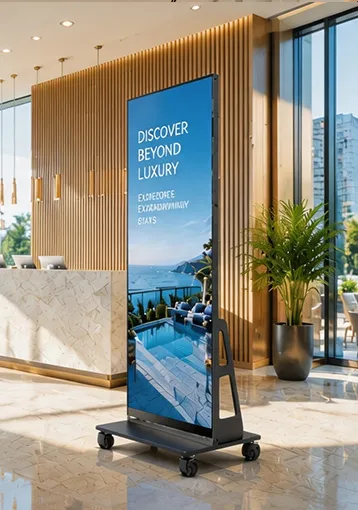

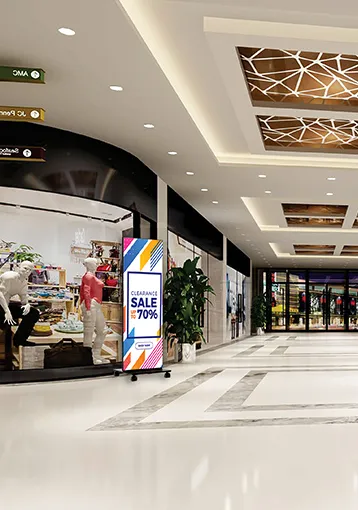

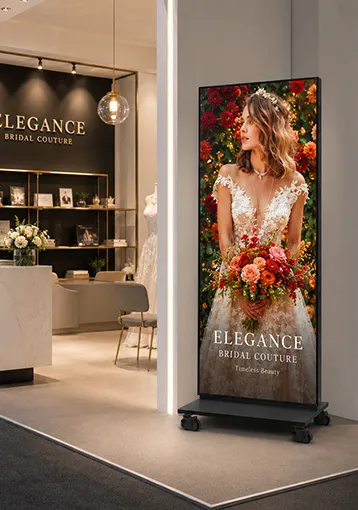

All-in-one smart LED poster for retail, malls, hotels and exhibitions — plug in and publish from the cloud.
Recommended: 10% extra spare parts (modules, receiving cards, power supplies), approx. from $249 (≈5% of the order, updates with your selection).
Shipping and transportation are quoted separately.
Price range: $4,970.00 through $10,475.00

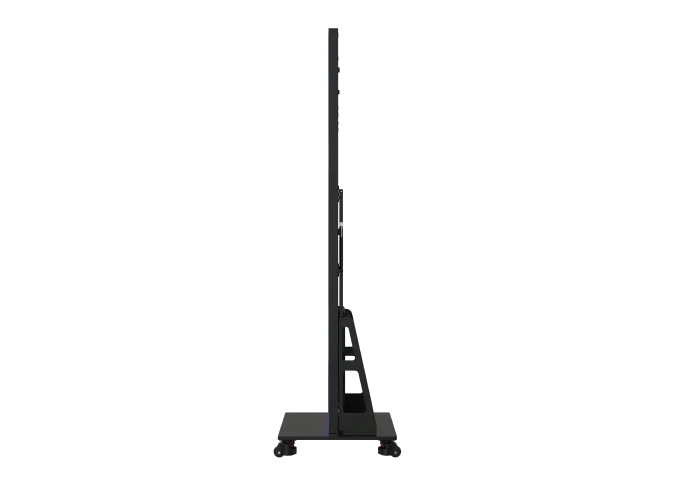

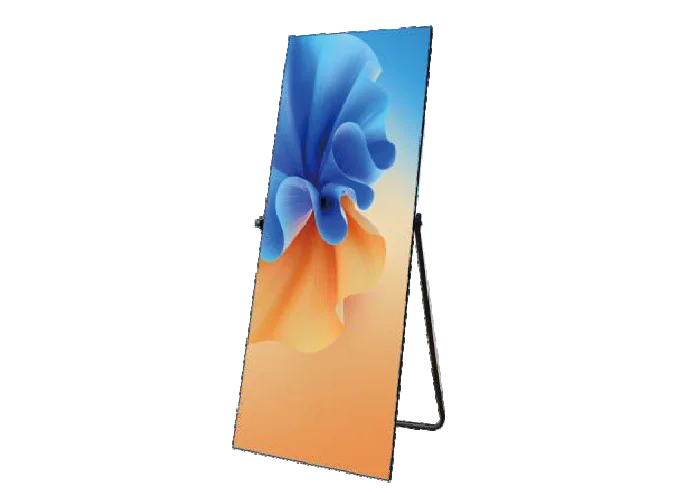

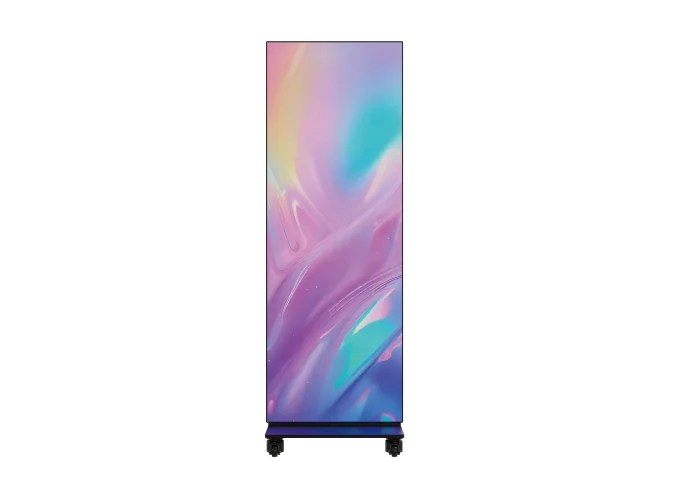

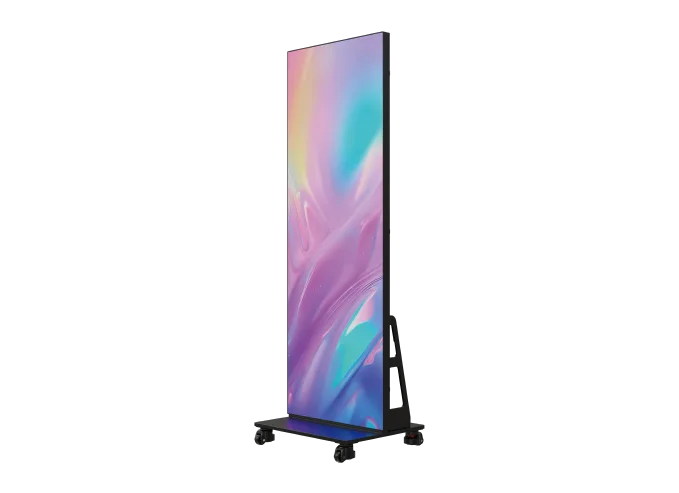

The V-Poster series LED display is an all-in-one smart LED display designed for indoor HD poster display market.

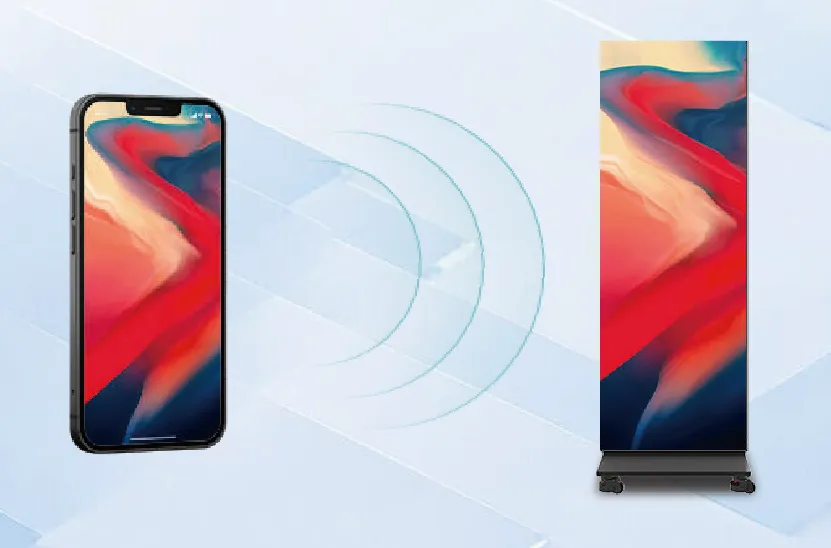

Easily control by 5G signal. LAN cable and USB Multiple connection options for confugration.

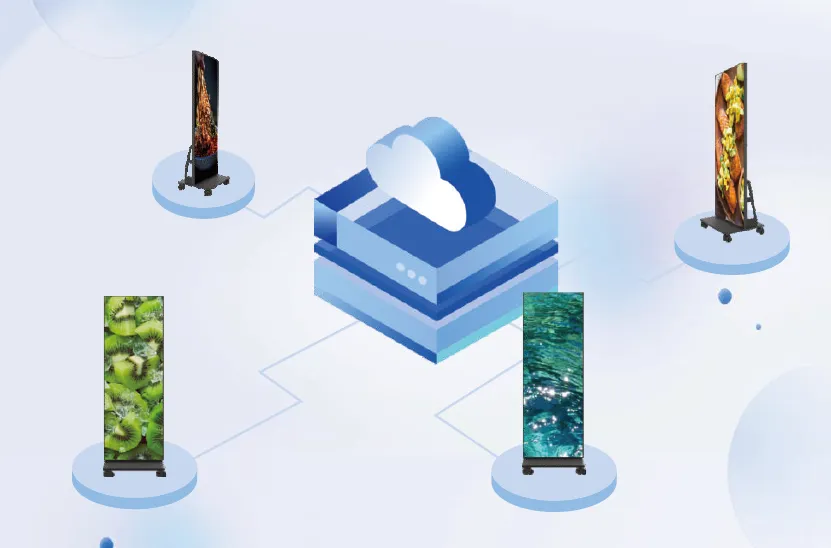

Release programs from the cloud, without geographical restrictions, anytime, anywhere.

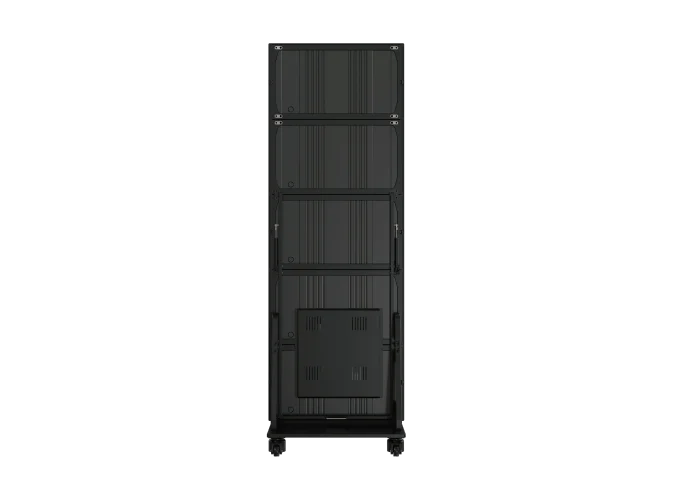

All component can be replaced from front side, convenient and fast.

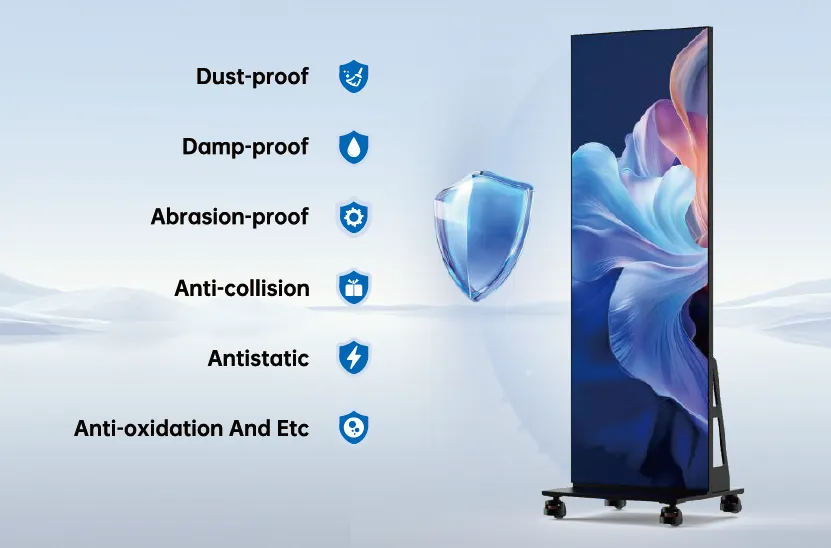

Through the GOB(SMD)or COB package process, module surface will be fully sealed with epoxy resin, which gives a fully protection for product against various external infuences.

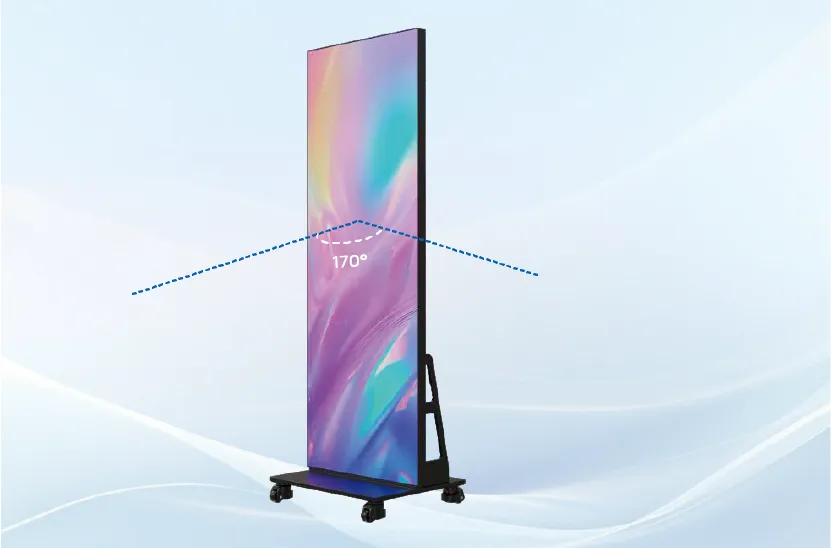

Flip chip COB makes wider view angle 170°/170°.
Tap a model to select it — the highlighted column is your current selection.
| Model | VPoster09 | VPoster12 | VPoster15 | VPoster18 | VPoster12 | VPoster15 | VPoster18 | VPoster25 |
|---|---|---|---|---|---|---|---|---|
| Pixel Configuration | COB | COB | COB | COB | SMD | SMD | SMD | SMD |
| Pixel Pitch(mm) | 0.9 | 1.25 | 1.56 | 1.875 | 1.25 | 1.56 | 1.875 | 2.5 |
| External Dimension(mm) (WxHxD) | 610x1,806x500 | 610x1,806x500 | 610x1,806x500 | 610x1,806x500 | 600x1,806x500 | 600x1,806x500 | 600x1,806x500 | 600x1,806x500 |
| Resolution (WxH) | 640X1,800 | 480x1,350 | 384x1,080 | 320x900 | 480x1,350 | 384x1,080 | 320x900 | 240x675 |
| Weight(kg) | 45 | 45 | 45 | 45 | 47 | 47 | 47 | 47 |
| Refresh Rate(Hz) | 3,840 | 3,840 | 3,840 | 3,840 | ≤3840 | ≤3840 | ≤3840 | ≤3840 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Viewing Angle (H/V) | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Maintenance Mode | Front access | Front access | Front access | Front access | Front access | Front access | Front access | Front access |
| Communication Mode | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G | WiFi,RJ45,5G |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
An all-in-one LED display or poster that is ready to use, for lobbies, retail, meeting rooms and church entrances. Not sure which size or pitch you need? Try the LED wall selector.
Unity Logics supplies, installs and supports this equipment across Southern California. Request a quote or book a free site survey.
Tell us about your project and our team will get back to you with pricing, availability and the right configuration — usually within one business day.
Tell us your venue size, audience count, and event type. Unity Logics can recommend the right package.
Unity V-Poster Series
SKU: UL-LED-CATALYST
Variant
Start Your Inquiry
Select your project type so we can ask the right questions.
Most LED walls look alike on a spec sheet. The difference is in the parts you can’t see. We choose each one for the job, and we tell you exactly what they are.
Panel and package prices are published on the site. Spare parts, shipping and installation are shown as separate lines, so you see exactly what you pay for.
We only sell screens we would put our own name on. Every series is chosen and checked against our spec before it joins the catalog.
Serviceable modules, spare parts ordered with your wall and components picked for long service life, so it still looks right years from now.
You get the parts list for your screen. Ask why we chose any component and we will walk you through it.
