All-in-one LED meeting display (108″–217″) with touch, wireless mirroring and mobile or wall mounting.
Recommended: 10% extra spare parts (modules, receiving cards, power supplies), approx. from $838 (≈5% of the order, updates with your selection).
Shipping and transportation are quoted separately.
Price range: $16,745.00 through $21,190.00

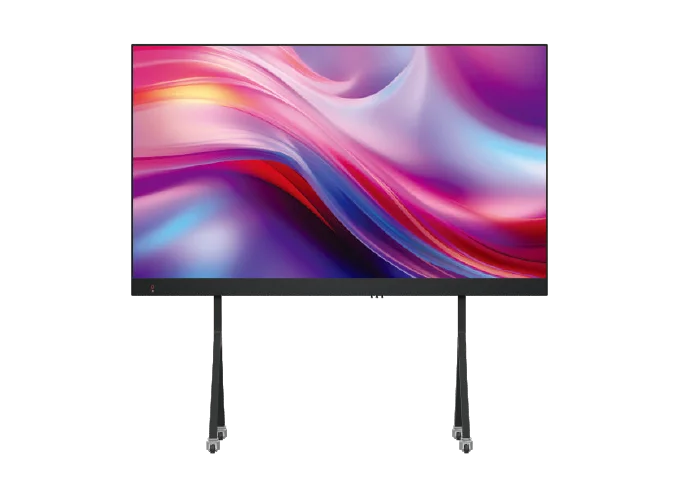

The V-PAD series LED display is an all-in-one smart LED display designed for indoor conference market.

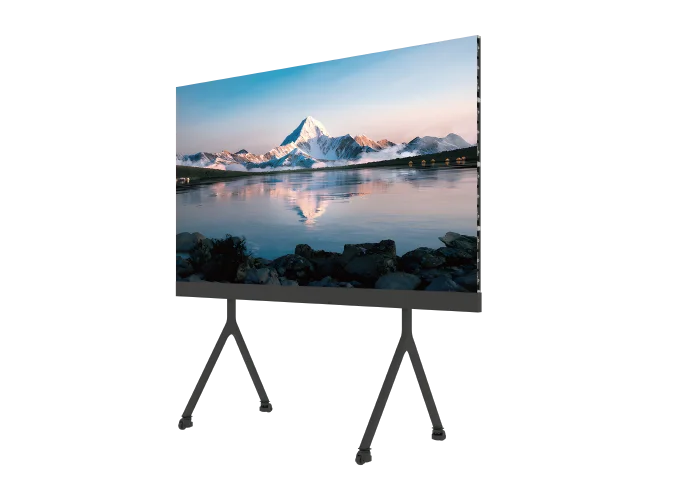

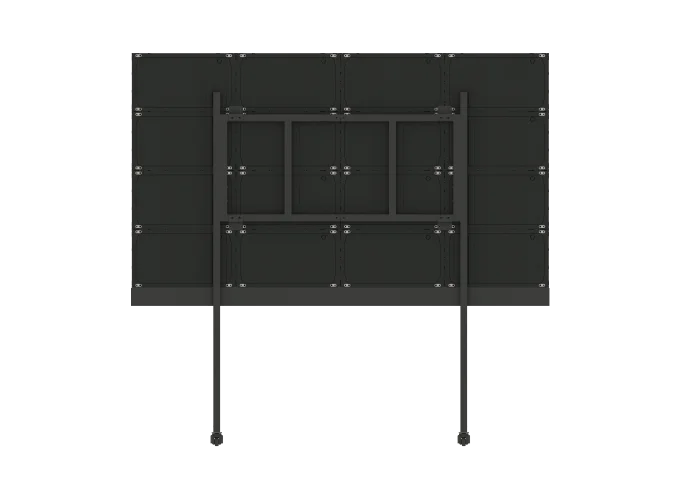

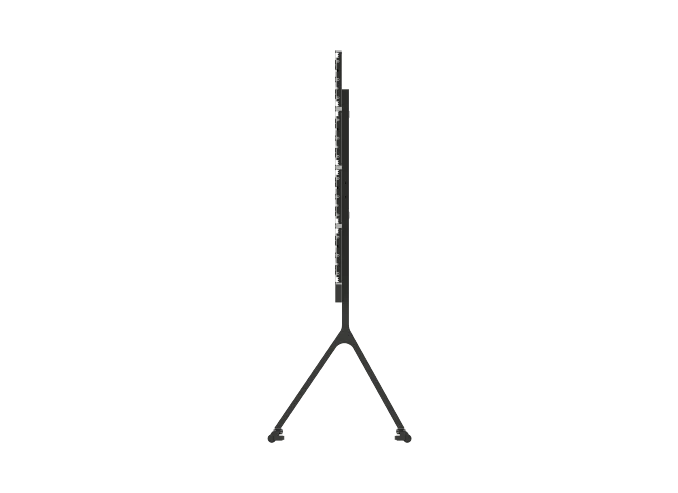

The product offers multiple installation options, allowing for either wheel-based floor installation or fixed mounting to walls.
It can expand the color range, covering a broader color space, resulting in a more realistic and vivid image.
Interactive function options for touch scenario, 10 point touch.
With the remote control, it is easy to adjust volume, brightness, and open files to play.
Supports screen mirroring of PC, smartphone and ipad.
Share screens from up to 9 devices simultaneously.
Tap a model to select it — the highlighted column is your current selection.
| Model | 108-2K | 136-2K | 163-2K | 163-4K | 217-4K | 108-2K | 136-2K | 163-2K | 217-2K |
|---|---|---|---|---|---|---|---|---|---|
| Pixel Configuration | COB | COB | COB | COB | COB | SMD | SMD | SMD | SMD |
| Pixel Pitch(mm) | 1.25 | 1.56 | 1.875 | 0.93 | 1.25 | 1.25 | 1.56 | 1.875 | 2.5 |
| Display Size(mm) (WxH) | 2,400x1,350 | 3,000x1,687.5 | 3,600x2,025 | 3,600x2,025 | 4,800x2,700 | 2,400x1,350 | 3,000x1,687.5 | 3,600x2025 | 4,800x2,700 |
| Resolution (WxH) | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 3,840x2,160 | 3,840x2,160 | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 | 1,920x1,080 |
| Overall Weight(kg) | 70 | 110 | 160 | 160 | 276 | 70 | 110 | 160 | 276 |
| Refresh Rate(Hz) | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 |
| Grayscale(bit) | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Brightness(nits) | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Color Temp(K) | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 | 2,000~12,000 |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Control Panel Type | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel | Remote control/Touch panel |
| Interface | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 | HDMIx3,3.5x1,USB3.0x1,USB2.0x1,RJ45x1 |
| WIFI Mode | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 | Wifi-5G bandx1,Wifi-2.4G bandx1,Wifi-APx1 |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |

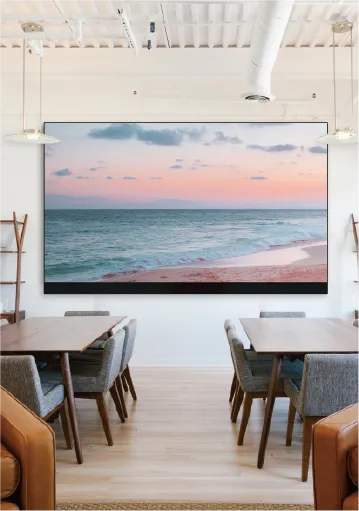

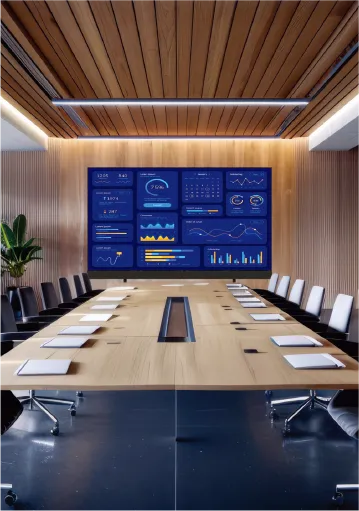

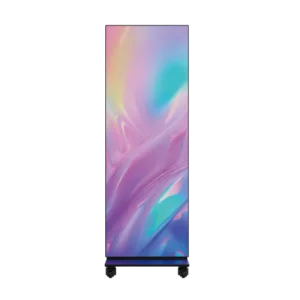

An all-in-one LED display or poster that is ready to use, for lobbies, retail, meeting rooms and church entrances. Not sure which size or pitch you need? Try the LED wall selector.
Unity Logics supplies, installs and supports this equipment across Southern California. Request a quote or book a free site survey.
Tell us about your project and our team will get back to you with pricing, availability and the right configuration — usually within one business day.
Tell us your venue size, audience count, and event type. Unity Logics can recommend the right package.
Unity V-Pad Series
SKU: UL-LED-LUMINA
Variant
Start Your Inquiry
Select your project type so we can ask the right questions.
Most LED walls look alike on a spec sheet. The difference is in the parts you can’t see. We choose each one for the job, and we tell you exactly what they are.
Panel and package prices are published on the site. Spare parts, shipping and installation are shown as separate lines, so you see exactly what you pay for.
We only sell screens we would put our own name on. Every series is chosen and checked against our spec before it joins the catalog.
Serviceable modules, spare parts ordered with your wall and components picked for long service life, so it still looks right years from now.
You get the parts list for your screen. Ask why we chose any component and we will walk you through it.
