Ultra-thin MIP fine-pitch video wall with optional high-brightness mode for conference, control and command centers.
Recommended: 10% extra spare parts (modules, receiving cards, power supplies), approx. from $49 (≈5% of the order, updates with your selection).
Shipping and transportation are quoted separately.
Price range: $970.00 through $2,860.00

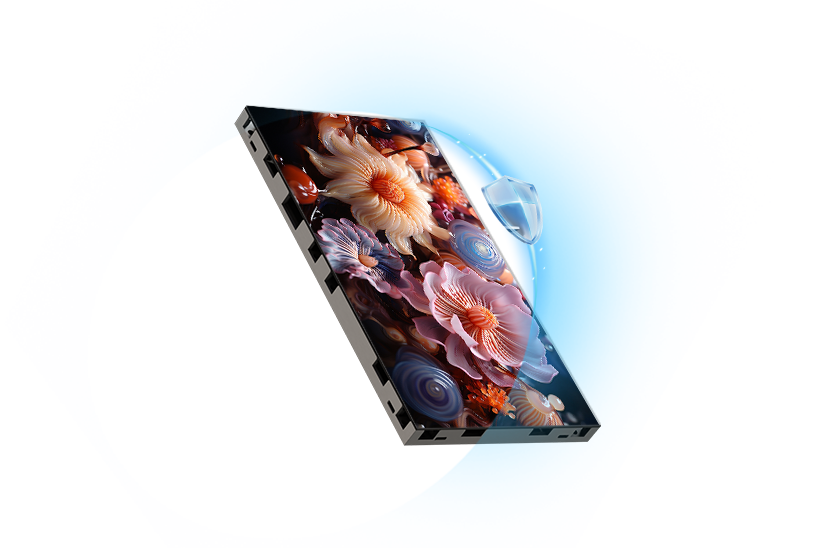

The black elves series LED display is a big size LED display for indoor conference.

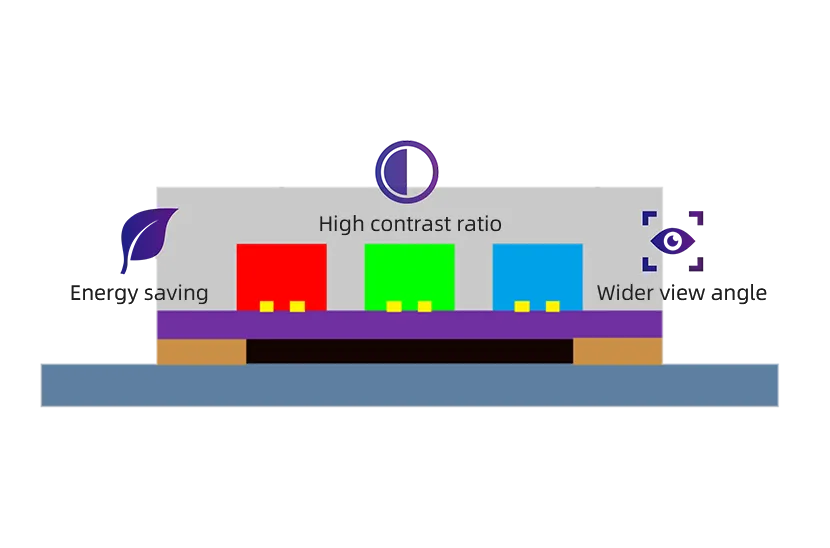

No welding pad block, high luminous efficiency, reduce the failure rate of the lamp bead.
Larger welding pad size for stronger connections.
smaller chip size for higher contrast ratio.
The black elves series LED display could use special COB packaging technology with an excellent product performance, featuring anti-collision anti-oxidation, anti-static, moisture-resistant and easy to clean.
With a mere 28mm thickness and a featherlight cabinet weight of just 4.6kg.
Standard brightness up to 1,000 nits.
Exceeding 15,000:1 contrast, the image is clear and bright, with details fully revealed.
Ultra-wide viewing Angle, up to 170°/170°.
Tap a model to select it — the highlighted column is your current selection.
| Model | 63J06 | 63J07 | 63J09 | 63J12 | 63J15 | 63J18 |
|---|---|---|---|---|---|---|
| Pixel Configuration | MIP | MIP | MIP | MIP | MIP | MIP |
| Pixel Pitch(mm) | 0.625 | 0.78 | 0.93 | 1.25 | 1.56 | 1.875 |
| Cabinet Size(mm)(WxHxD) | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 |
| Cabinet Resolution(WxH) | 960x540 | 768x432 | 640x360 | 480x270 | 384x216 | 320x180 |
| Cabinet Weight(kg/cabinet) | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 |
| Refresh Rate(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 |
| Grayscale(bit) | 16 | 16 | 16 | 16 | 16 | 16 |
| Brightness(nits) | 1,000(3,500 optional) | 1,000(3,500 optional) | 1,000(3,500 optional) | 1,000(3,500 optional) | 1,000(3,500 optional) | 1,000(3,500 optional) |
| Viewing Angle (H/V) | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
