Versatile 500 × 500 mm and 1000 × 500 mm SMD/GOB commercial display — single or double-sided, with optional hanging beam.
Recommended: 10% extra spare parts (modules, receiving cards, power supplies), approx. from $52 (≈5% of the order, updates with your selection).
Shipping and transportation are quoted separately.
Price range: $1,025.00 through $1,400.00
The Butterfly series LED display is a new product designed for the commercial display field. The product has the advantages of high grayscale, high protection, easy installation and maintenance, etc.
16 bit gray level makes the image exquisite and soft, bright and vivid.

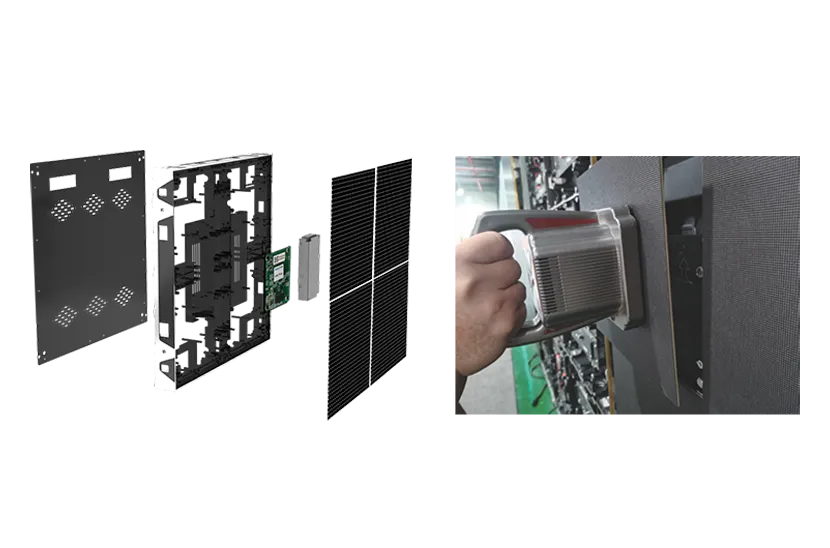

All components support full front maintenance.

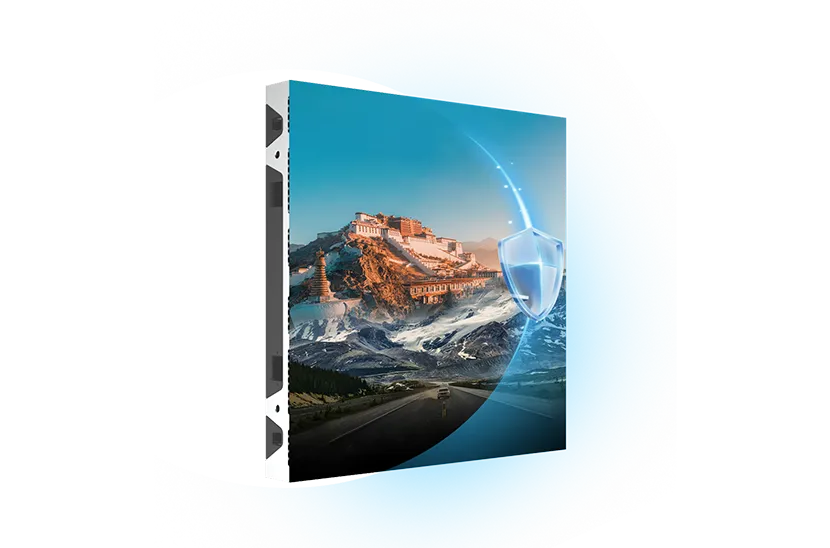

Surface treatment with GOB coating, enabling surface water-resistant,
dust-resistant, impact-resistant and anti-static.
Support hanging application.
Customizable double face display cabinet, offering both aesthetic appeal and a fashionable look.
Tap a model to select it — the highlighted column is your current selection.
| Model | 55F19 | 55F26 | 55F29 | 55F39 |
|---|---|---|---|---|
| Pixel Configuration | SMD(GOB optional) | SMD(GOB optional) | SMD(GOB optional) | SMD(GOB optional) |
| Pixel Pitch(mm) | 1.95 | 2.6 | 2.9 | 3.9 |
| Cabinet Size(mm) (WxHxD) | 500x500 | 500x500 | 500x500 | 500x500 |
| Cabinet Resolution (WxH) | 256x256 | 192x192 | 168x168 | 128x128 |
| Cabinet Weight(kg/cabinet) | 6.2(single face), 7.25(double face) | 6.2(single face), 7.25(double face) | 6.2(single face), 7.25(double face) | 6.2(single face), 7.25(double face) |
| Refresh Rate(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 |
| Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 |
A fine-pitch indoor LED wall for churches, boardrooms, lobbies, control rooms and studios, where people sit close and image quality matters. Not sure which size or pitch you need? Try the LED wall selector.
