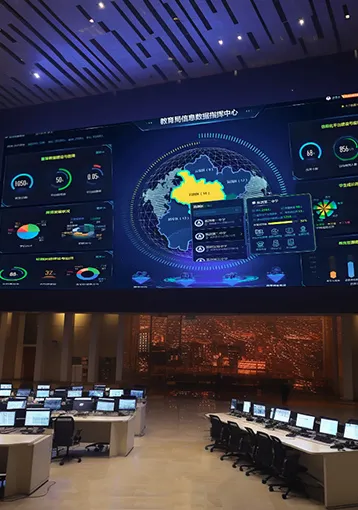

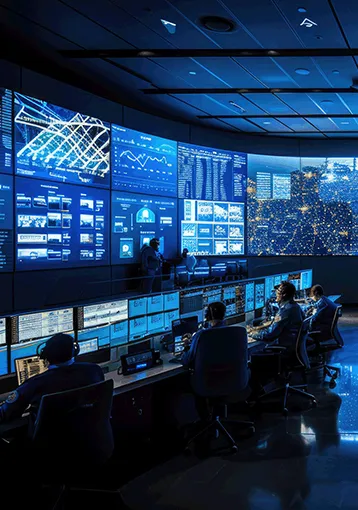

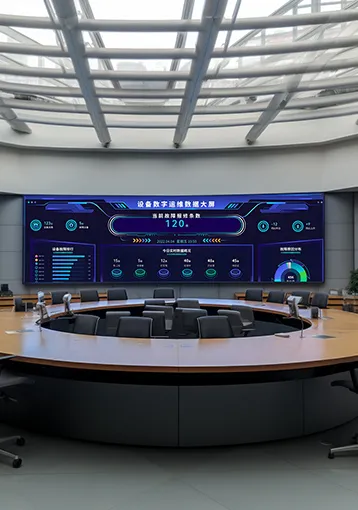

Ultra-thin, lightweight flip-chip COB video wall for conference rooms, control rooms and command centers.

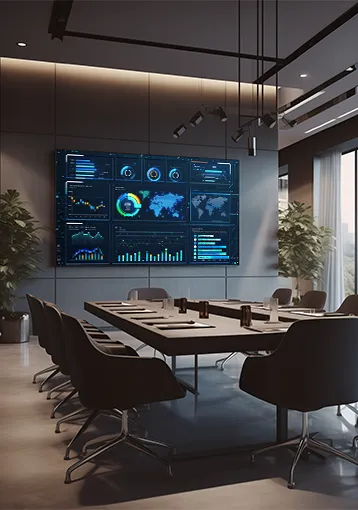

The black elves series LED display is a big size LED display for indoor conference.
No welding wire, reduce the failure rate of the lamp bead. Full flip chip, no welding pad block, high luminous efficiency, and wider view angle. Light-emitting chip direct contact with the PCB, which improves heat dissipation.

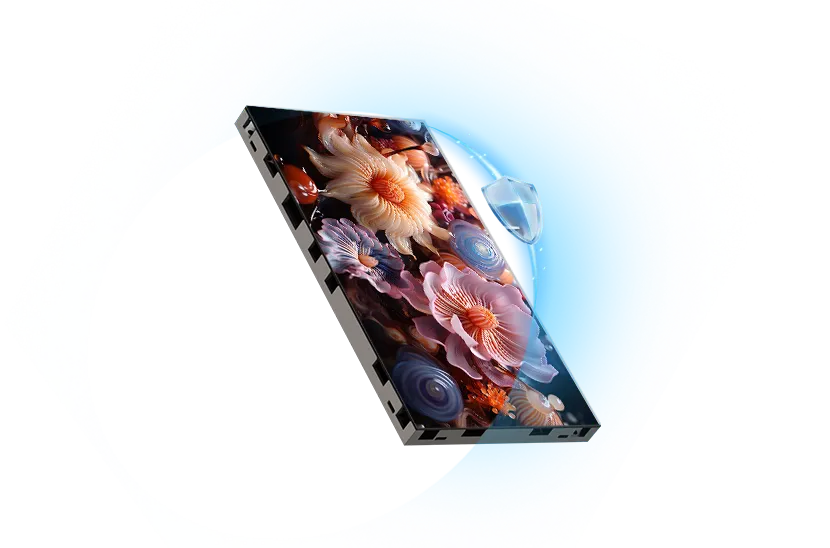

The Black elves series LED display use special COB packaging technology with an excellent product performance, featuring anti-collision anti-oxidation, anti-static, moisture-resistant and easy to clean.

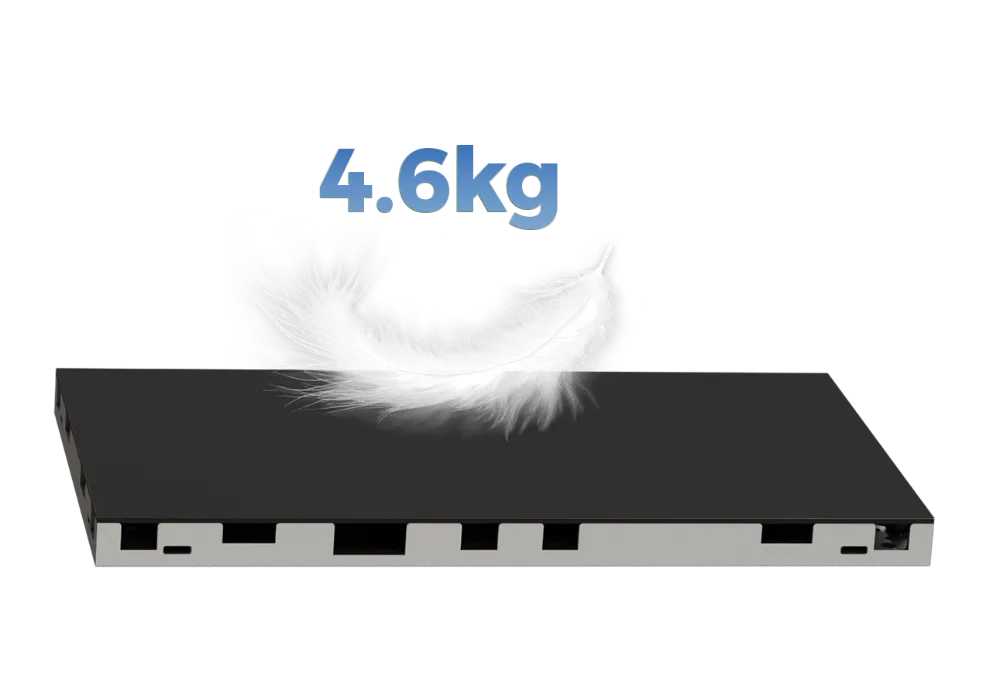

With a mere 28mm thickness and a featherlight cabinet weight of just 4.6kg.
Standard brightness up to 1,000 nits.
Exceeding 15,000:1 contrast, the image is clear and bright, with details fully revealed.
Ultra-wide viewing Angle, up to 170°/170°.
Tap a model to select it — the highlighted column is your current selection.
| Model | 63J06 | 63J07 | 63J09 | 63J12 | 63J15 | 63J18 | 42A07 | 42A10 | 42A12 | 42A15 |
|---|---|---|---|---|---|---|---|---|---|---|
| Pixel Configuration | COB | COB | COB | COB | COB | COB | COB | COB | COB | COB |
| Pixel Pitch(mm) | 0.625 | 0.78 | 0.93 | 1.25 | 1.56 | 1.875 | 0.75 | 1.0 | 1.25 | 1.5 |
| Cabinet Size(mm)(WxHxD) | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 600x337.5x28 | 480x270x28 | 480x270x28 | 480x270x28 | 480x270x28 |
| Cabinet Resolution(WxH) | 960x540 | 768x432 | 640x360 | 480x270 | 384x216 | 320x180 | 640x360 | 480x270 | 384x216 | 320x180 |
| Cabinet Weight(kg/cabinet) | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 4.6 | 3.2 | 3.2 | 3.2 | 3.2 |
| Refresh Rate(Hz) | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840~7,680 | 3,840 | 3,840 | 3,840 | 3,840 |
| Grayscale(bit) | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 | 14~16 |
| Brightness(nits) | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 | 800~1,000 |
| Viewing Angle (H/V) | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Working Voltage | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz | AC 100V~240V,50~60Hz |
| Lifetime(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
